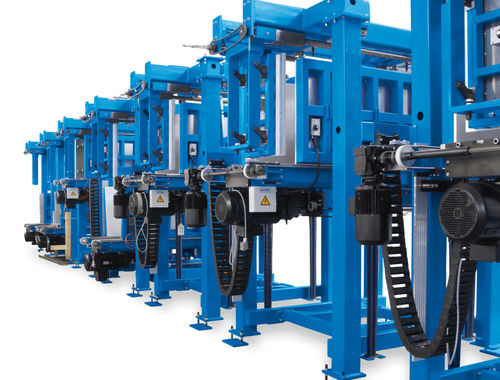

Refrigerator cabinet production line KGS

modularconstruction

Unique modularity for small and large production batches KGS systems technology is primarily used for the insulation of refrigerated appliance cabinets. A wide range of products can be made thanks to the flexible application possibilities and specific plant characteristics. This includes top-mount, bottom-mount or side-by-side equipment technology. KGS systems technology is consistently designed in a modular construction. This gives the processor a great deal of flexibility regarding the plant design and allows for quick and easy plant expansions. For this, the KGS system relies on stationary foaming fixture modules. Adapted to the individual requirements for the respective production, several KGS modules are coupled together. Typical applications include KGS5 or KGS10 configurations with five or ten foaming fixtures. With this, the modular construction shows its advantages in both small and large batches. In production lines with up to 40 foaming fixtures, Hennecke has already been able to reach production volumes of more than 6,000 cabinets a day, which is equivalent to a cycle time of nine seconds per cabinet. The production processes within the individual modules are identical, but in order to ensure high production flexibility they take place independently of one another.
