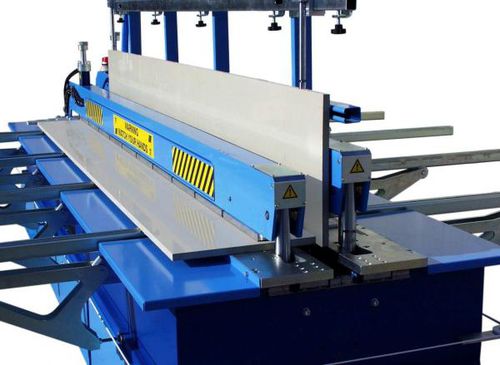

Butt welding machine SLV series

automaticfor plasticsvertical

The butt welding machines of type series SLV are an extension of type series SL...PLUS. With this machine, thermoplastic materials can not only be welded horizontally but also at right angles. Thus it is often possible to avoid costly hot gas or extrusion welds and folds. The horizontal board is welded to the vertical board (board thickness, vertical welding max. 30 mm and horizontal welding max. 50 mm). Thus it is possible to produce right-angled profiles and closed channels with annternal leg pipe dimension from 300 mm onward. Owing to the vacuum holder which can be mounted or dismounted in no time, the solid fixation of the vertically positioned boards is ensured. With this version it is also possible to produce pipes from a minimum diameter of 400mm without the vacuum holder. The lateral support arms can be folded up so that no unnecessary space is occupied when the machine is not used.
