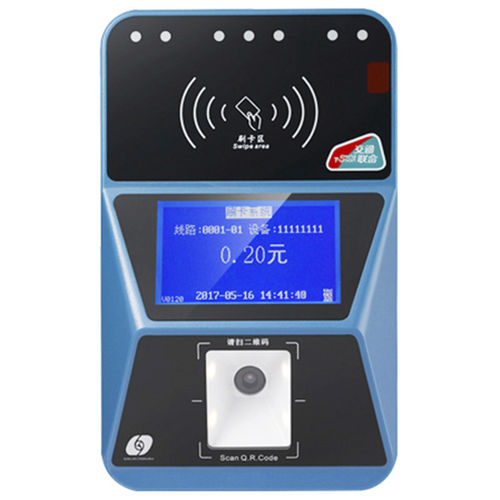

Portable payment terminal HBV01

wirelesssmartUSB

Shipping Weight: 4g 2000 Units in Stock Manufactured by: Highton Electronics CO LTD Specification - Features Display - 224*128 LCD display. Back 6-digit tube display Card reading distance - 0-70mm Communication interface - 2 RS232 interfaces and one CAN interface USB 2.0 interface - supporting U-disk data communication Infrared Transmission Interface - support data communication of infrared equipment Wireless communication interface - support GPRS, CDMA, 3G or 4G all-network communication SAM Card Interface - 4 SAM Cards, in line with ISO7816 standards Voice - Buzzer, 32 segments of built-in voice, optional TTS voice function Two-dimensional code interface - It can recognize two-dimensional code. Support two-dimensional code platform business Working Temperature - -20 - +70 Storage temperature - - 40 - +85 Relative humidity - 10%-95% relative humidity Data capacity - 32M byte data storage space, can store 60,000 blacklists, 30,000 records, can be increased according to demand (the current capacity is not exhausted). FAT16. File system Average trouble-free working time MTBF - > 30000 hours Each transaction time of swiping card - <300ms (M1 card of Ministry of Housing) Clock - Calendar real-time clock chip, error less than 20 seconds/month, wireless communication can support background time calibration, infrared acquisition time automatic time calibration Keyboard - 3 function keys Power supply - 8V-48V DC input Power consumption - less than 5W Machine size - 152mm*246mm*110mm
