Disc brake caliper M500SH/HR series
hydraulic releasespringmodular

disc brake caliper
disc brake caliper
Add to favorites
Compare this product

Go to the The Hilliard Corporation website for more information

Characteristics

Type
disc
Operation
hydraulic release, spring
Other characteristics
modular
Torque

Max.: 80,000 ft.lb

Min.: 0 ft.lb

Braking force

41 kN, 62 kN, 88 kN, 104 kN, 119 kN

Description

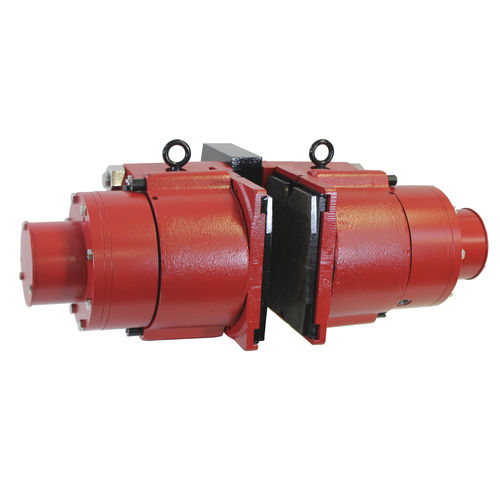

The Hilliard M500SH/HR brake caliper is a spring applied, hydraulically released brake for use in heavy duty industrial applications. The brake comes standard with marine grade epoxy paint suitable for outdoor environments. The M500SH is available with standard force ratings. which when paired with the correct disc size produces an exact braking torque for the application. The caliper features "Maintenance Mode" which removes all stored spring energy within the cylinder assembly. This allows for brake pad replacement, monitor unit adjustment and seal replacement without the need to remove the brake from service. Applications Amusement / Stage Equipment - Conveyors - Cranes - Lifts/Elevators - Material Handling - Mining - Renewable Energy - Steel Industry - Winches Type: Spring Applied / Hydraulic Released
