Foam gasket 7300 series

neoprene®EMI shieldingwindow

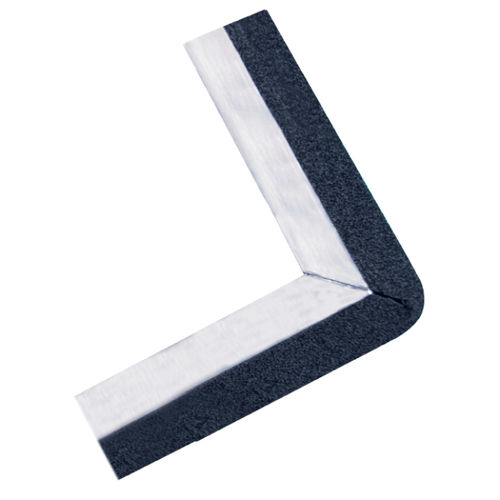

The 7300 series EMC-IP gaskets are cost-effective combinations of an EMI shielding gasket and a water seal. This type of gasket comes with a self-adhesive strip. The gasket consists of two neoprene foam cores, one of which is covered with reinforced foil, based on the high performance Amucor alloy. Amucor is highly compatible with aluminum and zinc-plated steel. If the gasket is intended to be in contact with alochrom or stainless steel, we recommend using highly conductive textile in stead of Amucor. The two parts can be bent independently from one another to guarantee optimal shielding and sealing performance. Sharp inner corners can be made easily, without interrupting the water seal. For special applications we can offer different foam cores, conductive foils and fabrics. Benefits • Bends easily around sharp corners without interrupting the water seal • Excellent water sealing up to IP65 (depending on construction) The 7300 EMC-IP gasket can also be produced in a circle shape. The water-seal can be either on the outside or the inside of the gasket
