Cartridge fuse H4FGaBat series
fast-actingClass gPVDC

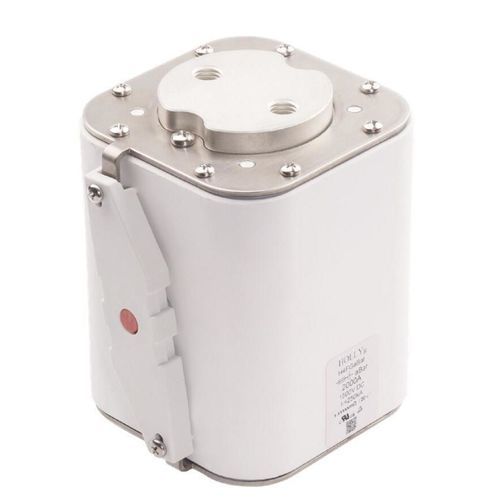

Cartridge fuse - H4FGaBat series - Holly/Hollyfuse/Hollyland - fast-acting / Class gPV / DC
Cartridge fuse - H4FGaBat series - Holly/Hollyfuse/Hollyland - fast-acting / Class gPV / DC
Add to favorites
Compare this product
Go to the Holly/Hollyfuse/Hollyland website for more information

Characteristics

Configuration
cartridge
Type
fast-acting
Class
Class gPV
Other characteristics
DC, high-voltage, high-current
Applications
battery, for photovoltaic applications, for distribution switchgear
Amperage

Max.: 2,000 A

Min.: 400 A

VDC

1,500 V

Description

Overview
The H4FGaBat is a DC fuse link designed to protect photovoltaic strings, battery systems and DC power distribution up to 1500 V DC. It is available in rated currents from 400 A to 2000 A and is intended for industrial PV and energy storage applications.

Technical specifications
  • Rated current: 400 A - 2000 A
  • Rated voltage: 1500 V DC
  • Reference standards: IEC 60269-7, UL 248-13


Certifications
  • TUV
  • cURus


Applications
  • Photovoltaic (PV) string and combiner protection
  • Battery energy storage systems (BESS)
  • Industrial DC power distribution and protection circuits


Ordering information
  • Available in multiple current ratings between 400 A and 2000 A
  • Contact supplier for dimensions, mounting options and variant codes
