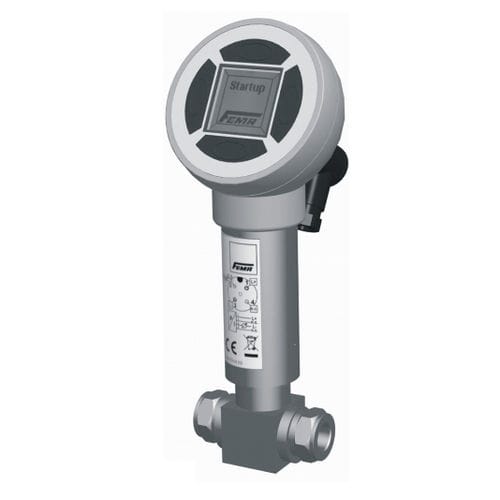

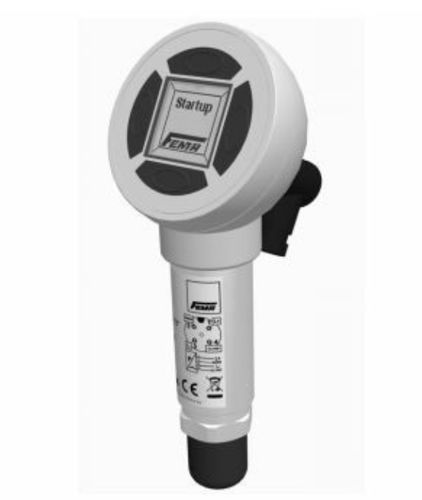

Electronic pressure switch Smart DCM DIFF
differentialM12 connectorthreaded

electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
electronic pressure switch
Add to favorites
Compare this product


Characteristics

Technology
electronic
Pressure type
differential
Electrical connection
M12 connector
Mounting
threaded
Fluid
for liquids, for gas
Material
stainless steel
Protection level
EMC
Other characteristics
adjustable, high-precision, with digital display, IP65
Process temperature

Min.: -20 °C (-4 °F)

Max.: 80 °C (176 °F)

Pressure range

Min.: 0 bar (0 psi)

Max.: 20 bar (290.08 psi)

Burst pressure

Min.: 0 bar (0 psi)

Max.: 80 bar (1,160.3 psi)

Description

Electronic Differential Pressure Switches are microprocessor-controlled pressure measurement devices for a differential pressure range of 0 ... 20 bar. They are suitable for an extremely wide range of applications, including the precision recording, monitoring and control of system pressure. They come complete with an angled M12X1 plug and are mounted directly to the pipe via two G1/4" internal thread connections. Features: • - Open-collector • - Configurable as min./max./window monitor • - LCD graphical display (Human-Machine-Interface models, only) can be swiveled for better readability; display can be rotated in 90o steps by software for better readability; HMI can be freely swiveled 310o • - Self-monitoring electronics • - Adjustable drop-in/drop-out delay Sensing element material - Stainless Steel Kind of pressure - differential pressure, relative Power supply - 24 Vdc | 1 VA Medium type - liquid or gas IP class - IP65 Climate class Indoors 4K4H as per EN 60721-3-4 Outdoors 3K8H as per EN 60721-3-3 Mechanical stability Vibration 10 g as per IEC 68-2-6 (up to 2000 Hz) Mechanical shock 50 g as per IEC 68-2-27 Pressure resistance see Table 1. Protection rating EMC according to EN 61326 Safety class II as per EN 61010 Protection class IP65 as per EN 60529-2 (with M12 connector Process connection 2 x G¼” internal thread Electrical connection 4-prong A-coded M12x1 plug Power supply 18...35 Vdc, max. 30 mA (without load) Main switch load 250 mA (overcurrent protection) Switch output Output, high level VSUPPLY minus 5 V (min.) Output, low level GND plus 0.5 V (max.) Reaction time max. 300 ms WARN output voltage passive: VSUPPLY minus 2 V active: ≤ 0.5 V
