Spray head LEO

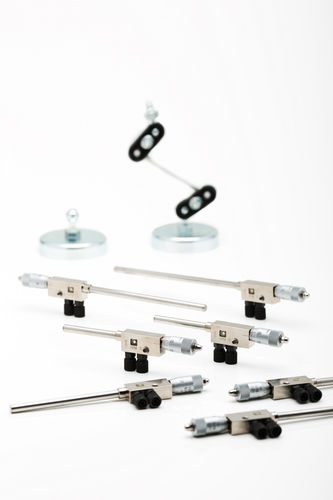

The next generation of spray technology. Our new Leo. Reduce your costs through reproductible volumetric flow control Universal spray head where the spray quantity is set via a scaled measuring drum. This makes it possible to check the set quantities at any time. Any changes are immediately visible and can be corrected. With constant parameters (fluid, spray and fluid pressure), the quantity is always 100% reproducible. The supply line exits at an angle of 90° to the spray jet. Our LEO spray head is available in two variants: The LEOR spray head has an M5 thread for fastening to a customer-side mount. The LEOB spray head has a ball joint. This allows it to be attached flexibly and precisely with the flexible HPM Technologie mounts. All of our spray heads are available individually or as a spray head group. The spray head group contains air and fluid connections (check valve) for the distributor. TECHNICAL SPECIFICATIONS Low pressure range from 0,5 - 2,5 bar Air consumption from 2 -5,5 /min Viscosity range up to 2.300mm²/s (20°C) - 500 mm²/s (40°C) Spray with nearly round cone full of about 15 ° Available in the nozzle lengths 30, 70, 105, 130 und 155 mm
