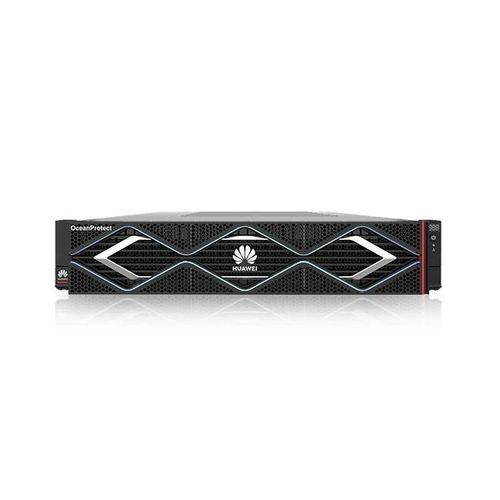

Data storage system OceanProtect E8000

Product Overview
Huawei OceanProtect E8000 Backup Storage is a high-end product with 2 U disk-controller integration. It can scale to 128 nodes (256 controllers) and is built on end-to-end acceleration with an active-active, high-reliability architecture. In addition, it offers high capacity, efficient reduction, and intelligent convergence, and is widely used for highly efficient enterprise backup and recovery, ensuring data resilience.

Key Features

• High Capacity: 2 U 36-slot high-density hardware with 61.44 TB SSDs, delivering 256 PB single-system usable capacity.
• Efficient Reduction: Innovative data reduction algorithms support source deduplication, deduplicated replication, and global deduplication, delivering a reduction ratio of up to 72:1 — 40% higher than the competition.
• Intelligent Convergence: One system does the work of two — short- and long-term data retention, saving on total cost of ownership (TCO). It offers resilience and convergence, and ensures zero data loss, with built-in ransomware protection and hardware-level WORM.

Technical Specifications
Model | OceanProtect E8000 Backup Storage
Data Reduction Ratio | 72:1
System Physical Backup Bandwidth | 53 TB/hour
System Logical Backup Bandwidth | 115 TB/hour
System Recovery Bandwidth | 55 TB/hour
Number of Controllers per Node | 2
Usable Capacity per Node | 2 PB
Maximum Number of Nodes | 128
System Usable Capacity | 256 PB
Data Disk Types | 15.36 TB/30.72 TB/61.44 TB NVMe SSD
Front-End Port Types | 16/32/64 Gb FC, 10/25/40/100 GbE
Front-End Storage Protocols | NFS, SMB/CIFS, FC, iSCSI, S3, FTP/SFTP, NDMP

Characteristics / Technical Specifications

• High-end backup storage system for enterprise environments
• 2U disk-controller integration
• Scalable up to 128 nodes (256 controllers)
• Active-active, high-reliability architecture
• Supports both short- and long-term data retention
• Built-in ransomware protection and hardware-level WORM
• Supports multiple front-end protocols: NFS, SMB/CIFS, FC, iSCSI, S3, FTP/SFTP, NDMP
• NVMe SSD options: 15.36 TB, 30.72 TB, 61.44 TB
• Maximum system usable capacity: 256 PB
• Data reduction ratio up to 72:1
