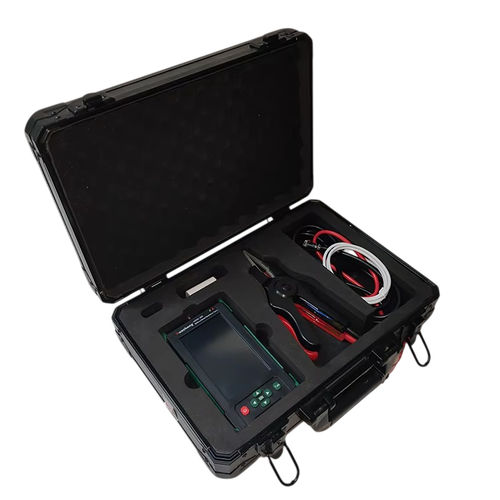

Resistance tester HZNZ-300

conductancebatteryportable

The battery internal conductance tester uses a color resistance touch screen. The instrument can be operated by finger or stylus, making it flexible and convenient. It is a digital, multifunctional, portable tester designed for fast and accurate measurement of battery operating parameters. The instrument can detect the voltage, impedance, or conductance of a single battery online, store and process the detected data, issue alarms for battery failure, and accurately distinguish the condition of the battery. The instrument allows for saving, querying, deleting, and exporting test data. The upper computer software analyzes and displays the test data through various charts and automatically generates a battery test report. Product Features 1.The instrument offers two modes of operation: color touch LCD screen and button operation. You can either directly touch the screen or use the buttons, making it simple to use with a clear process, meeting the needs of different users. 2.Data storage: The instrument supports both internal and external storage. The internal memory can store up to 999 sets of test data, with each set containing data for 500 batteries. It also supports data querying, analysis, and more. 3.Equipped with an automatic identification function to measure direct and reverse connections. 4.The instrument can record and query voltage, impedance, conductance, and capacity, making it easy to estimate the remaining capacity of the battery and perform other analyses. 5.The instrument includes an oscilloscope function, providing real-time graphical displays of the battery’s highest and lowest voltage.
