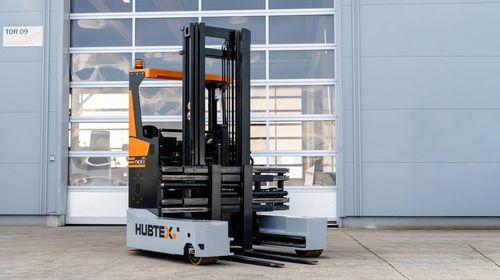

Electric reach truck NexX 30
ride-onnarrow-aislepallet

electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
electric reach truck
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, transport, pallet, industrial, narrow-aisle
Other characteristics
3-wheel, compact, for heavy loads, multi-directional
Carrying capacity

3 t
(3.3 us ton)

Lifting height

354 in

Overall width

2,590 mm
(102 in)

Ground clearance under mast with load

Min.: 50 mm
(2 in)

Max.: 80 mm
(3.1 in)

Turning circle radius

1,515 mm
(59.6 in)

Rated output

8.5 kW
(11.6 hp)

Description

Compact, powerful, maneuverable: The NexX multidirectional reach truck from HUBTEX transports heavy loads without taking up too much space. The multidirectional steering makes the truck extremely agile. Even transporting long loads crosswise is no problem for this reach truck. Ideal for use in narrow aisles. The shortened and compact design of the NexX enables it to be used in mixed warehouses with narrow aisles. Where there is no longer enough space for conventional forklifts and other industrial trucks, our NexX multidirectional reach truck is the perfect alternative. Whether you need to transport pallets or long goods, the NexX is suitable for a wide range of requirements. The HX steering also allows transverse travel. And the reach mast truck can even transport long goods of up to 315" in tight spaces. Finally, with a lift height of up to 354", the truck can also be used for order picking in high rack positions. The 360° HX steering ensures a minimal turning radius and the fastest possible change of direction. As a result, the NexX is known for its extremely efficient and safe handling. Thanks to the HX steering, the operator can effortlessly drive lengthways, crossways and in circles, switching direction smoothly whilst in motion. This makes the truck ideal for use in a warehouse with particularly narrow aisles. The steering and the traction drive of the three-wheel chassis with PU tires are 100% electric and therefore operate without hydraulics. This fully electric steering system significantly reduces energy consumption. In fact, we are the world's first and only manufacturer to use this steering system on its 3-wheel vehicles.

VIDEO
