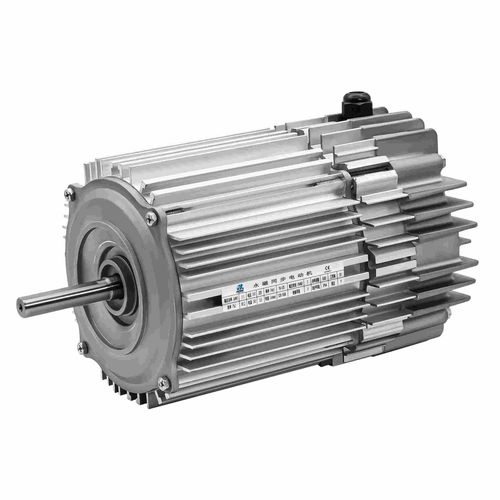

Fan motor ACECIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- EC
- Protection class
- IP55
- Configuration
- permanent magnet, aluminum-frame, TEAO, compact
- Efficiency classes
- IE4, IE5
- Cooling mechanism
- air-cooled, IC01
- Applications
- blower, for fans
- Other characteristics
- low-voltage, custom, energy-saving, variable-speed, standard, variable-torque
- Power
Min.: 0.06 kW
(0.082 hp)Max.: 4 kW
(5.438 hp)- Rotational speed
Min.: 200 rpm
(1,256.64 rad.min-1)Max.: 18,000 rpm
(113,097.34 rad.min-1)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)
Description
The motor is equipped with a built-in (internal) controller,and can run for a long time at low speed.
•Constant torque output at speed range.
•High efficiency, high power factor.
