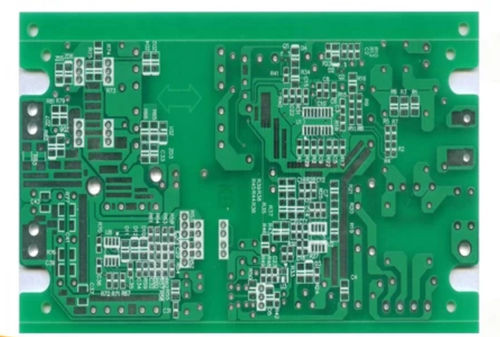

Double-sided PCB 485165for automotive applications4-layers
Add to favorites
Compare this product
Characteristics
- Options
- double-sided
- Applications
- for automotive applications
- Number of layers
- 4-layers
Description
Double sided pcb in china, Printed circuit board in china
2.Base material: FR4
3.Board thickness : 1.6mm
4.Copper thickness (oz): 1/1/1/1OZ
5.Min hole size: 0.60mm
6.Min line width: 0.228mm
7.Min line spacing: 0.177mm
8.Surface finishing: LF HASL
9.Impedance control. Y / N （Tol %):Y
10.Solder Mask Silkscreen:Green
11.Single board size:Dim X (mm):195;Dim Y (mm):345
12.Special: 4-layer LF HASL PCBs for Automotive,
13.Routing/Punching:CNE-Test: 100%
14.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
15.Outgoing reports: final inspection, e-test, solder ability test, micro section and so on
