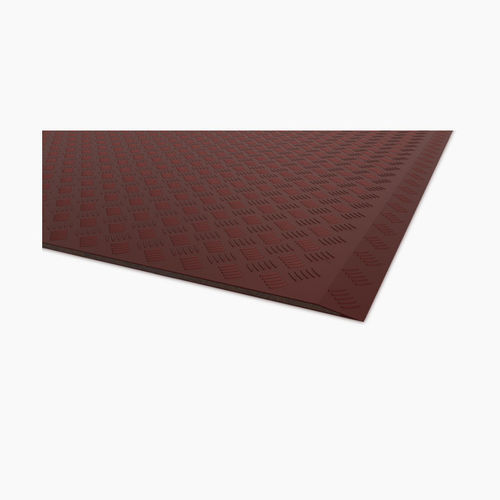

Cryogenic protection insulating material Zaltex®

compositefoam

Product Details
Zaltex® is a thermal insulation used in cryogenic protection against liquefied natural gas (LNG) spills. This composite foam, reinforced with Basalt fibers, is a patented thermal protection that meets the ISO 20088-1 standard. It is resistant to cryogenic shock CSP (ISO 20088-3) and fire PFP (ISO 22899-1). Zaltex® is an asset to better respond to the prevention of risks listed in the Seveso 3 directive.

Features

• Resistant to multiple cryogenic and high temperature shocks
• Temperature range from -190°C to 1000°C
• Thermal expansion similar to that of steel
• Dry installation (no VOC)
• ISO 20088-3 certified
• ISO 22899-1 certified

Benefits

• Reliability
• Light-weight
• Easy to assemble
• Low maintenance

Markets and expertise

• Energy

Technical characteristics / specifications

• Patented composite foam reinforced with Basalt fibers
• Meets ISO 20088-1 standard
• Resistant to cryogenic shock CSP (ISO 20088-3)
• Resistant to fire PFP (ISO 22899-1)
• Temperature range: -190°C to 1000°C
• Thermal expansion similar to steel
• Dry installation (no VOC)
