- Flat seal
- Hutchinson Precision Sealing Systems

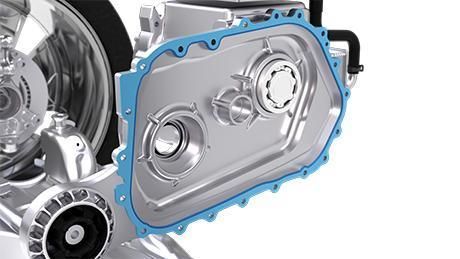

Flat seal rubberwith framemotor
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Material
- rubber
- Configuration
- with frame
- Application
- for aerospace applications, industrial, for hydraulic fluids, for automotive applications, truck, motor, for automobiles, for aircraft, for vehicles, for rebar, for robots, air conditioning
- Fluid
- oil, for water, air, for gas
- Other characteristics
- hydraulic, static, high-temperature
- Pressure limit
206 bar, 620 bar
(2,987.8 psi, 8,992.3 psi)
Description
Product Overview
Bonded plate seals are bi-material rubber parts bonded onto a rigid insert to facilitate assembly. They ensure reliable sealing throughout the product’s life, thanks to the rigid backing that acts as a spacer for the fixing screws. Bonded gaskets guarantee reliable closing, even in housings with stress-induced deformations or porosity.
Material Expertise
Thanks to advanced expertise in materials, the best combination of elastomers (EPDM, ACM, AEM, HNBR, FKM, VMQ, FVMQ, etc.) is defined and bonded to high-performance rigid metal or thermoplastic substrates. This guarantees high-performance static sealing and enables use in extreme operating conditions without compromising weight. These solutions withstand high temperatures and intense pressure.
Certifications & Applications
Plate seals are approved for automotive, industrial, aerospace (AS9100, NADCAP), and military applications.
Features
Benefits
Markets and Expertise
Technical Specifications / Characteristics
Bonded plate seals are bi-material rubber parts bonded onto a rigid insert to facilitate assembly. They ensure reliable sealing throughout the product’s life, thanks to the rigid backing that acts as a spacer for the fixing screws. Bonded gaskets guarantee reliable closing, even in housings with stress-induced deformations or porosity.
Material Expertise
Thanks to advanced expertise in materials, the best combination of elastomers (EPDM, ACM, AEM, HNBR, FKM, VMQ, FVMQ, etc.) is defined and bonded to high-performance rigid metal or thermoplastic substrates. This guarantees high-performance static sealing and enables use in extreme operating conditions without compromising weight. These solutions withstand high temperatures and intense pressure.
Certifications & Applications
Plate seals are approved for automotive, industrial, aerospace (AS9100, NADCAP), and military applications.
Features
- Wide range of reinforcement materials: steel, stainless steel, titanium, aluminum, magnesium
- Aerospace applications: withstands 3000 psi / 206 bar operating pressure and 9000 psi / 620 bar burst pressure
- Adhesion solutions adapted to substrates and operating conditions
Benefits
- Reliability
- Easy and safe assembly
- Easy to replace (maintenance)
Markets and Expertise
- Aerospace
- Automotive
- Industrial air conditioning
- Defense
- E-mobility
- Hydrogen
- Industry
- Off-road
- Trucks
- Robotics
- E-bike
Technical Specifications / Characteristics
- Bi-material rubber part bonded on rigid insert
- Rigid backing acts as spacer for fixing screws
- Suitable for housings with deformations or porosity
- Customizable shape, thickness, and screw number
- Compatible elastomers: EPDM, ACM, AEM, HNBR, FKM, VMQ, FVMQ, etc.
- Reinforcement materials: steel, stainless steel, titanium, aluminum, magnesium
- Operating pressure (aerospace): 3000 psi / 206 bar
- Burst pressure (aerospace): 9000 psi / 620 bar
- Approved for automotive, industrial, aerospace (AS9100, NADCAP), and military use
