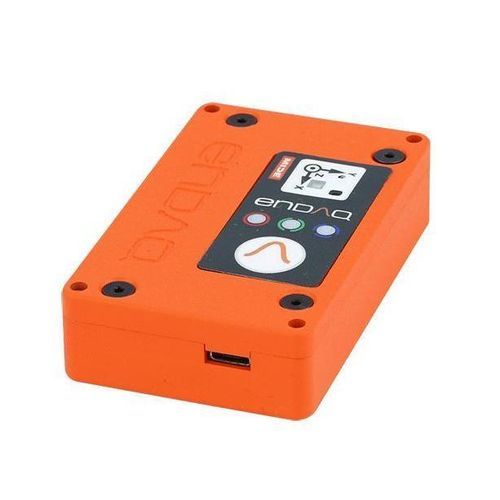

Vibration data logger S5-E25D40

shockhumiditylight-intensity

Overview
The S5-E25D40 is a compact vibration data logger integrating a high-performance piezoelectric accelerometer, a secondary digital capacitive accelerometer and multiple embedded environmental sensors. The 7075 aluminum enclosure extends durability and frequency response. This configuration includes an enlarged battery for extended recording durations.

Short description

• Case Material: Aluminum 7075
• Piezoelectric Accelerometer: ±25 g
• Digital Capacitive Accelerometer: ±40 g
• Battery: 850 mAh
• Storage: 8 GB

Product Features
Convenient:

• Standalone measurement system with sensors, local storage and rechargeable battery
• Handheld form factor for portable tests
• Quick configuration via USB interface

Adaptable:

• Multiple accelerometers for extended dynamic range
• Several embedded environmental sensors in one unit
• User-programmable wake-up triggers and sample rates

Reliable:

• Designed for use in demanding environments
• Calibrated with NIST-traceable accelerometer (calibration certificate available)
• Storage capacity suitable for billions of data points

Accelerometer Specifications
Piezoelectric | Range: ±25 g | Sampling Rate: 20,000 Hz | Bandwidth: 5 to 2,000 Hz | Noise: < 0.01 gRMS | Resolution: < 0.00125 g
Digital Capacitive | Range: ±40 g | Sampling Rate: 4,000 Hz | Bandwidth: 0 to 300 Hz | Noise: < 0.01 gRMS | Resolution: 0.00008 g

Additional Sensor Specifications
Microphone | Measurement Range: 105 dB | Resolution: (not specified) | Sampling Rate: 0 (off) to 20,000 Hz
GPS Location | Measurement Range: (not specified) | Resolution: 2.5 m | Sampling Rate: 0 (off) to 1 Hz
GPS Time | Resolution: 60 ns | Sampling Rate: 0 (off) to 1 Hz
Gyroscope | Measurement Range: 2000°/s | Resolution: 0.06 °/s | Sampling Rate: 0 (off) to 3,200 Hz
Magnetometer | Measurement Range: ±1300 µT | Resolution: 0.3 µT | Sampling Rate: 0 (off) to 10 Hz
Temperature | Range: -40 to 85 °C | Resolution: 0.01 °C | Sampling Rate: 0 (off) to 10 Hz
Pressure | Range: 1 to 200 kPa | Resolution: 1.6 Pa | Sampling Rate: 0 (off) to 10 Hz
Humidity | Range: 0 to 100 %RH | Resolution: 0.04% RH | Sampling Rate: 0 (off) to 10 Hz
Light | Range: 0 to >20 uV | Resolution: <100 mlx | Sampling Rate: 0 (off) to 4 Hz

Environmental Specifications
Operating Temperature: -20 °C to 60 °C (-4 °F to 140 °F) | Recharging Temperature: 10 °C to 45 °C (50 °F to 113 °F)
Recommended Storage Temperature: -20 °C to 25 °C (-4 °F to 77 °F)
Humidity: 0 to 95 %RH (non-condensing)
Pressure (absolute): 20 kPa to 110 kPa
Shock Limit: > 3,000 g
No Electric Field Susceptibility: 2 MHz to 18 GHz @ 200 V/m
No Magnetic Field Susceptibility: 30 Hz to 100 kHz

Battery & Storage Performance (examples)
Sample Rate 100 Hz | Storage Capacity / Continuous Recording: 22 days | Main Accel. Trigger: 44 hours | 2nd Accel. Trigger: 44 hours | Periodic/Time Trigger: 7 days | (Alternate) 177 days
Sample Rate 1,000 Hz | Storage Capacity: 9 days | Main Accel. Trigger: 41 hours | 2nd Accel. Trigger: 44 hours | Periodic/Time Trigger: 7 days | (Alternate) 167 days
Sample Rate 5,000 Hz | Storage Capacity: 3 days | Main Accel. Trigger: 30 hours | 2nd Accel. Trigger: 44 hours | Periodic/Time Trigger: 7 days | (Alternate) 129 days
Sample Rate 20,000 Hz | Storage Capacity: 17 hours | Main Accel. Trigger: 17 hours | 2nd Accel. Trigger: 44 hours | Periodic/Time Trigger: 7 days | (Alternate) 68 days

Dimensions & Mechanical Specifications
Mass: 100 grams
Case Material: Aluminum 7075
Mounting - Screw: 4-40 bolts (100 in-oz)
Mounting - Tape (Double Sided): 3M 950 Tape
Length: 76.2 mm (3.00") | Width: 47.0 mm (1.85") | Thickness: 18.3 mm (0.72")
Ingress Protection: IP50 (Dust Protected)

Free Software Features
enDAQ LAB:

• Self-contained application (no drivers or installation required)
• Configures enDAQ sensors
• Basic reporting capabilities
• View multiple sensor channels concurrently
• Quick snapshot of data from enDAQ sensors
• Batch export and convert data

enDAQ CLOUD:

• Upload raw data to Cloud for standard and custom reports
• Pre-configured standard reports
• Advanced analysis metrics
• API access and storage options
• Unlimited custom alerts

Applications

• Vibration sensing & recording
• Shock & impact testing
• Shipping & transport monitoring
• Wi‑Fi enabled wireless monitoring
• Environmental testing

Notes
Piezoelectric accelerometers are AC-coupled and may saturate with very short high-energy pulses (pulse widths < 1 ms). For such events consider models optimized for short-duration pulses.

Technical specifications

• Model / SKU: S5-E25D40
• Brand: enDAQ
• Primary accelerometers: Piezoelectric ±25 g; Digital capacitive ±40 g
• Max sampling rates: Piezoelectric 20,000 Hz; Capacitive 4,000 Hz
• Battery: 850 mAh
• Storage: 8 GB
• Mass: 100 g
• Dimensions: 76.2 × 47.0 × 18.3 mm
• Ingress Protection: IP50
• Environmental operating range: -20 °C to 60 °C
