Vibration data logger S5-D40

shockhumiditylight-intensity

Overview

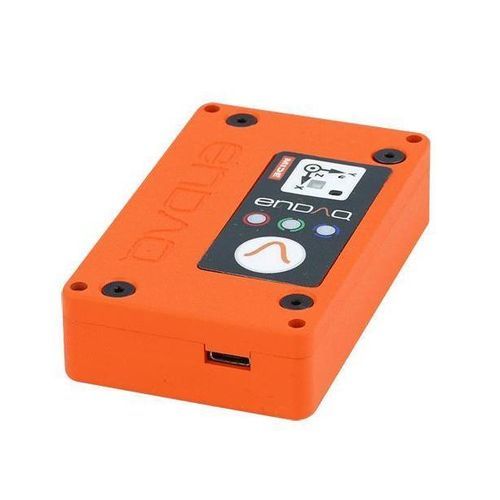

The S5-D40 is a vibration recorder with additional environmental sensors. This model's low cost and robust aluminum enclosure makes it ideal for general purpose vibration testing in harsh environments. The S5 offers a larger battery to allow for the longest recording times of the sensors.

Short specifications

• Case Material: Aluminum 7075
• Digital Capacitive Accelerometer: ± 40g
• Battery: 850 mAh
• Storage: 8 GB

Applications

• Vibration Sensing & Recording
• Shock & Impact Testing
• Shipping & Transport Monitoring
• Wi‑Fi Enabled Wireless Monitoring
• Environmental Testing

Product Features
Convenient

• Standalone measurement system with sensors, storage & rechargeable battery
• Handheld form factor
• Setup in minutes over USB interface

Adaptable

• Multiple accelerometers for dynamic range
• Many additional embedded sensors in a single system
• User-programmable wake-up conditions and sample rates

Reliable

• Trusted in harsh environments by over 2,000 customers and the US Navy
• Calibrated with NIST traceable accelerometer; calibration certificates available
• Storage capacity for billions of data points

Accelerometer Specifications
Accelerometer Type: Digital Capacitive
Range: ± 40g
Sampling Rate: 4,000 Hz (maximum)
Bandwidth: 0 to 300 Hz
Noise: < 0.01 gRMS
Resolution: 0.00008 g

Additional Sensor Specifications
Microphone — Measurement Range: 105 dB; Sampling Rate: 0 (off) to 20,000 Hz
GPS Location — Resolution: 2.5 m; Sampling Rate: 0 (off) to 1 Hz
GPS Time — Resolution: 60 ns; Sampling Rate: 0 (off) to 1 Hz
Gyroscope — Measurement Range: 2000°/s; Resolution: 0.06 °/s; Sampling Rate: 0 (off) to 3,200 Hz
Magnetometer — Measurement Range: ± 1300 µT; Resolution: 0.3 µT; Sampling Rate: 0 (off) to 10 Hz
Temperature — Range: -40 to 85 °C; Resolution: 0.01 °C; Sampling Rate: 0 (off) to 10 Hz
Pressure — Range: 1 to 200 kPa; Resolution: 1.6 Pa; Sampling Rate: 0 (off) to 10 Hz
Humidity — Range: 0 to 100 %RH; Resolution: 0.04 %RH; Sampling Rate: 0 (off) to 10 Hz
Light — Range: 0 to >20 uV; Resolution: <100 mlx; Sampling Rate: 0 (off) to 4 Hz

Environmental Specifications
Operating Temperature: -20°C to 60°C (-4°F to 140°F). Recharging Temperature: 10°C to 45°C (50°F to 113°F).
Recommended Storage Temperature: -20°C to 25°C (-4°F to 77°F).
Humidity: 0 to 95 %RH (non-condensing).
Pressure: 20 kPa to 110 kPa (absolute).
Shock Limit: >3,000 g.
No Electric Field Susceptibility: 2 MHz to 18 GHz @ 200 V/m.
No Magnetic Field Susceptibility: 30 Hz to 100 kHz.

Battery & Storage Performance
Battery performance depends on configuration (sensor sample rates, triggers), battery age and temperature. The table below summarizes typical storage life and recording durations (assumes a relatively new battery at room temperature; all sensors on at default sample rate with main accelerometer sample rate driving performance):
50 Hz — Storage Capacity: 103 days; Continuous Recording: 58 hours; Main Accel. Trigger: 7.5 days; Periodic/Time Trigger: 218 days
200 Hz — Storage Capacity: 26 days; Continuous Recording: 58 hours; Main Accel. Trigger: 7.5 days; Periodic/Time Trigger: 217 days
800 Hz — Storage Capacity: 6.5 days; Continuous Recording: 54 hours; Main Accel. Trigger: 7.5 days; Periodic/Time Trigger: 204 days
4,000 Hz — Storage Capacity: 31 hours; Continuous Recording: 44 hours; Main Accel. Trigger: 7.5 days; Periodic/Time Trigger: 177 days

Mechanical / Dimensions
Mass: 100 grams
Case Material: Aluminum 7075
Mounting — Screw: 4-40 Bolts (100 in-oz)
Mounting — Tape (double sided): 3M 950 Tape
Length: 76.2 mm (3.00")
Width: 47.0 mm (1.85")
Thickness: 18.3 mm (0.72")
Ingress Protection: IP50 (Dust Protected)

Free Software Features

• enDAQ LAB: self-contained app to configure sensors, view multiple channels, basic reporting, quick snapshots, batch export and convert data
• enDAQ CLOUD: upload raw data to Cloud for standard and custom reports, advanced analysis metrics, API access, storage and alerting
• Open Source Python Libraries: load & parse IDE files, generate PSD and SRS, double integrate to velocity & displacement, resample data

Product Add-On
Mounting Kit ($15). A complimentary enDAQ Pelican case is included with every enDAQ® data loggers order (does not include S3-D16 sensors).

caractéristiques / spécifications techniques

• Model: S5-D40 (product variant of S5 series)
• Brand: enDAQ
• Accelerometer: Digital capacitive, ±40g, up to 4,000 Hz sampling, bandwidth 0–300 Hz, noise <0.01 gRMS, resolution 0.00008 g
• Additional sensors: Microphone, GPS (location & time), Gyroscope, Magnetometer, Temperature, Pressure, Humidity, Light
• Battery: 850 mAh
• Storage: 8 GB internal
• Mass: 100 g
• Dimensions: 76.2 x 47.0 x 18.3 mm (L x W x T)
• Case material: Aluminum 7075
• Ingress protection: IP50 (dust protected)
• Operating temperature: -20°C to 60°C; storage: -20°C to 25°C
• Shock limit: >3,000 g
