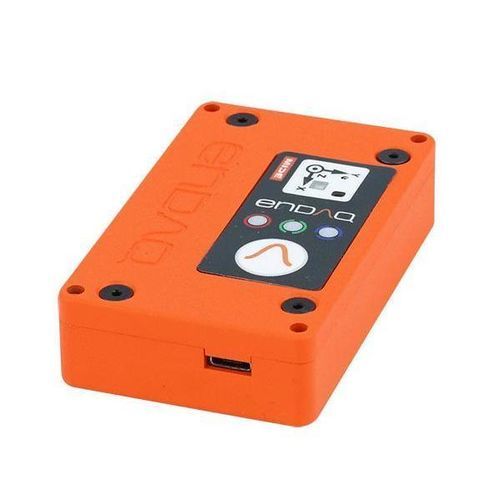

Shock data logger S5-R2000D40

relative humiditylight-intensityvibration

Product Overview
The S5-R2000D40 is a shock recorder with a high-performance piezoresistive accelerometer, a secondary capacitive accelerometer and multiple environmental sensors. This model features a wide measurement range (±2,000g), an aluminum 7075 enclosure for improved reliability and widened frequency response, and a larger battery for extended recording times.

Short Specifications

• Case Material: Aluminum 7075
• Piezoresistive Accelerometer: ±2,000g
• Digital Capacitive Accelerometer: ±40g
• Battery: 850 mAh
• Storage: 8 GB

Application Areas

• Vibration Sensing & Recording
• Shock & Impact Testing
• Shipping & Transport Monitoring
• Wi-Fi Enabled Wireless Monitoring
• Environmental Testing

Product Features
Convenient

• Standalone measurement system with sensors, storage and rechargeable battery
• Handheld form factor
• Setup in minutes over USB interface

Adaptable

• Multiple accelerometers for wide dynamic range
• Many additional embedded sensors in a single system
• User-programmable wake-up conditions and sample rates

Reliable

• Trusted in harsh environments by over 2,000 customers and the US Navy
• Calibrated with NIST-traceable accelerometer
• Storage capacity for billions of data points

Accelerometer Specifications
Accelerometer Type | Range | Sampling Rate | Bandwidth | Noise | Resolution
Piezoresistive | ± 2,000g | 20,000 Hz | 0 to 2,000 Hz | < 1.6 gRMS | < 0.2 g
Digital Capacitive | ± 40g | 4,000 Hz | 0 to 300 Hz | < 0.01 gRMS | 0.00008 g

Additional Sensor Specifications
Sensor | Measurement Range | Resolution | Sampling Rate
Microphone | 105 dB | | 0 (off) to 20,000 Hz
GPS Location | | 2.5 m | 0 (off) to 1 Hz
GPS Time | | 60 ns | 0 (off) to 1 Hz
Gyroscope | 2000°/s | 0.06 °/s | 0 (off) to 3,200 Hz
Magnetometer | ± 1300 µT | 0.3 µT | 0 (off) to 10 Hz
Temperature | -40 to 85 °C | 0.01 °C | 0 (off) to 10 Hz
Pressure | 1 to 200 kPa | 1.6 Pa | 0 (off) to 10 Hz
Humidity | 0 to 100 %RH | 0.04% RH | 0 (off) to 10 Hz
Light | 0 to >20 uV | <100 mlx | 0 (off) to 4 Hz

Environmental Specifications
Parameter | Range | Notes
Operating Temperature | -20°C to 60°C (-4°F to 140°F) | Recharging Temperature 10°C to 45°C (50°F to 113°F)
Recommended Storage Temperature | -20°C to 25°C (-4°F to 77°F) |
Humidity | 0 to 95 %RH | Non-Condensing
Pressure | 20 kPa to 110 kPa (2.9 psi to 16.0 psi) | Absolute Pressure
Shock Limit | >3,000 g | Refer to shock report for details
No Electric Field Susceptibility | 2 MHz to 18 GHz @ 200 V/m | Refer to EMI test report for details
No Magnetic Field Susceptibility | 30 Hz to 100 kHz | Refer to EMI test report for details

Battery & Storage Performance
Battery performance depends on configuration, battery age and temperature. The following is typical performance at room temperature with a relatively new battery. Columns: Sample Rate | Storage Capacity | Continuous Recording | Main Accel. Trigger | 2nd Accel. Trigger | Periodic/Time Trigger
100 Hz | 22 days | 37 hours | 44 hours | 7 days | 153 days
1,000 Hz | 9 days | 37 hours | 44 hours | 7 days | 146 days
5,000 Hz | 3 days | 30 hours | 44 hours | 7 days | 129 days
20,000 Hz | 17 hours | 17 hours | 44 hours | 7 days | 68 days

Dimensions & Mechanical
Mass: 100 grams
Case Material: Aluminum 7075
Mounting - Screw: 4-40 Bolts (100 in-oz)
Mounting - Tape (Double Sided): 3M 950 Tape
Length: 76.2 mm (3.00")
Width: 47.0 mm (1.85")
Thickness: 18.3 mm (0.72")
Ingress Protection: IP 50 (Dust Protected)

Free Software & Analysis Tools

• enDAQ LAB: self-contained application to configure sensors, view multiple channels, basic reporting, batch export and convert data
• enDAQ CLOUD: upload raw data to the cloud for standard and advanced custom reports, API access and storage
• Open Source Python Libraries: load & parse files, generate PSD and SRS, double integrate to velocity & displacement and resample data

Included Items
Complimentary enDAQ Pelican case included with every enDAQ® data logger order (selected models).

caractéristiques / spécifications techniques

• Model family: S5
• Typical model shown: S5-R2000D40
• Primary accelerometer: Piezoresistive ±2,000g, up to 20,000 Hz sampling
• Secondary accelerometer: Digital capacitive ±40g, up to 4,000 Hz sampling
• Battery: 850 mAh (typical)
• Internal storage: 8 GB
• Case: Aluminum 7075
• Mass: 100 g
• Dimensions: 76.2 mm × 47.0 mm × 18.3 mm
• Ingress Protection: IP 50
• Environmental operating range: -20°C to 60°C
• Shock limit: >3,000 g
• Typical list price (excl. tax): 5,299.00 USD
• Lead time: 8 weeks plus shipping
