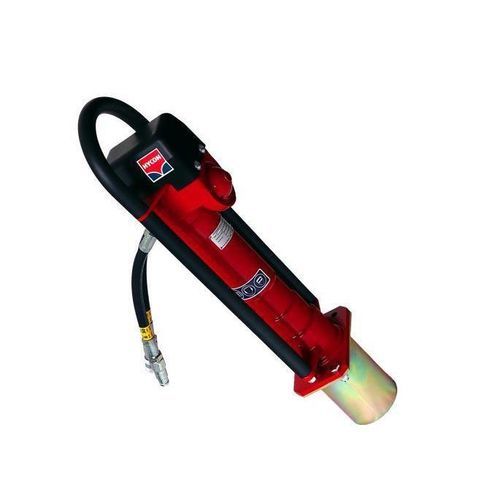

Hydraulic pile driver HPD

Overview
HYCON's handheld hydraulic post driver HPD is a portable tool for rapid driving of fence posts and signposts into ground and difficult soils. Designed for use with hydraulic power units or oil flow dividers, it offers interchangeable adaptors for various post profiles.

Benefits

• High impact energy for efficient post driving
• Replaceable square and round adaptors (Ø60–130 mm / 65x65–110x110 mm)
• Low maintenance design
• Optional remote trigger for extended reach
• Operable in adverse weather and submerged conditions

Applications
Typical uses include fencing, sign posts, forestry, vineyards, traffic sign installation and other siteworks where fast post installation is required.

Compatibility
Compatible with any hydraulic power source or the HYCON HFD oil flow divider. Trigger valve kit available for remote operation. Flanges available for HYCON HPP hydraulic power packs.

Technical data
Item no.: 1010700
Item no. trigger valve kit: 4142828
Weight [kg]: 28.2
Dimensions L x W [mm]: 645 x 230
Oil flow [LPM]: 20-30
Working pressure [bar]: 100
Max pressure [bar]: 160
Sound power level LWa [dB]: 96
Vibration level, 3 axis [m/s2]: 9.4
Square adaptors [mm]: 65 x 65 - 110 x 110
Round adaptors [mm]: Ø60, Ø80, Ø105, Ø130
Other sizes/profiles: Adaptors available on request
CE approval: not specified

Caractéristiques / spécifications techniques

• Item no.: 1010700
• Item no. trigger valve kit: 4142828
• Weight: 28.2 kg
• Dimensions (L x W): 645 x 230 mm
• Oil flow: 20-30 LPM
• Working pressure: 100 bar
• Max pressure: 160 bar
• Sound power level LWa: 96 dB
• Vibration level (3 axis): 9.4 m/s2
• Square adaptors: 65 x 65 - 110 x 110 mm
• Round adaptors: Ø60, Ø80, Ø105, Ø130 mm
• Other sizes/profiles: Adaptors available on request
