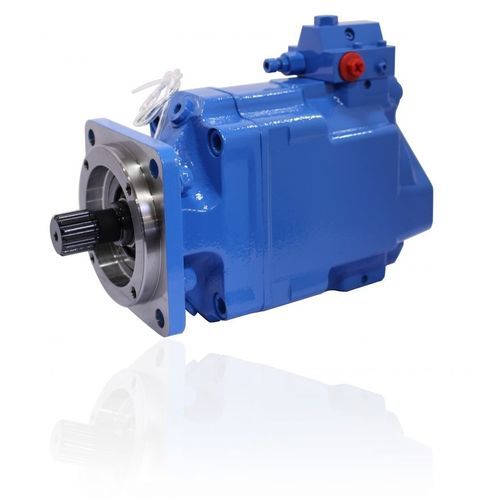

Hydraulic piston pump TXVA series
handlingfor vehicles

hydraulic piston pump
hydraulic piston pump
Add to favorites
Compare this product


for vehicles, handling

400 bar, 420 bar, 1,900 bar (5,802 psi)

Flow rate

Min.: 0 l/min (0 us gal/min)

Max.: 50 l/min (13.2 us gal/min)


1,900 rpm, 2,000 rpm (11,938 rad.min-1)


29 kg (63.93 lb)


Of similar design to the TXV series pump, with SAE C flange and shaft, the TXVA series pumps are available in 2 models with a maximum displacement of 75 and 92 cc/rev. Maximum operating pressure is up to 400 bar. Caracteristics and advantages : flange according to SAE C (2 bolts, or 4 bolts) – US version, UNF ports, models of 75 and 92 cc/rev. max. operating pressure 400 bar (420 bar peak), max. displacement at full displacement of 1900 to 2000 rpm depending on the model, fitted with “load sensing” regulation for flow adaptation in the pump, can be mounted directly on the engine PTO or on the vehicle gearbox PTO, drive shaft in splined or keyed version. Applications : truck equipment (handling cranes, forestry cranes, refuse trucks, spreaders and snow removal vehicles, and other public works equipment), military, agricultural machinery.
