Rotary transfer machine Eclipse 12-100

CNC12-positionmachining

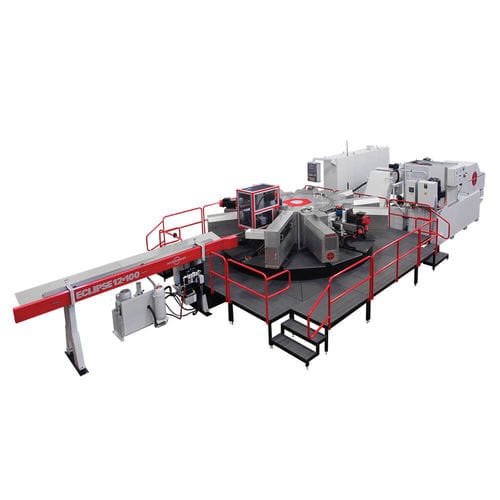

The new Eclipse 12-100 is a ground-up redesign of the famous Hydromat multi-spindle rotary transfer machine concept with all new components. It features a heavy duty cast iron machine frame that is 2m in diameter, nearly twice as large as the traditional 12 station Hydromat machine. This machine platform offers multiple tool spindles in a single footprint integrated with one chip management & coolant system. Robot load/unload with auto inverting offers six-sided machining capability on both bar and blank loading applications. Each of the 12 tool spindle modules features 3-axis or 4-axis capability with all electric servo spindles and high-tech components such as heavy-duty linear guideways for high accuracy, and large bearing diameters for extra stability, that yield smoother cutting at higher speeds. The Eclipse CNC control has fixture mapping capability for exceptional station to station accuracy. Designed to be exceptionally rigid, these modules were designed with hefty castings for superior vibration dampening properties and maximum precision. The Eclipse offers a high degree of machining flexibility derived through engineering expertise coupled with a visionary concept, the type of creative thinking that has produced this superior Rotary Machining Center for small to large batch production. Features -Up to five vertical tool spindle units available as options -FANUC 30iB CNC control and touch screen operator pendent interface -Index Table equipped with Hirth Ring coupling providing indexing accuracy and repeatability -Table index time: 0.9 seconds -Quick change Hainbuch collet and chuck table clamping systems
