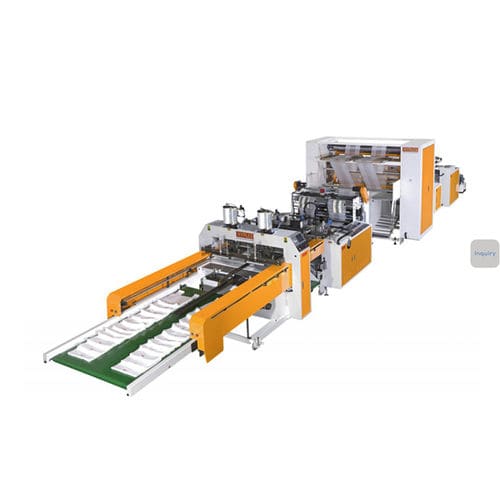

Plastic bag making machine HP-TS-AUSR-SG-2L SERIES (2 LINES)

automatic

FULLY AUTOMATIC SERVO MOTOR & SERVO DRIVER SYSTEM HEAT SEAL & CUT T-SHIRT BAGS MAKING MACHINE Main Features: *WITH IN-LINE HEAT SLITTING DEVICES *WITH IN-LINE POST GUSSETING DEVICES *WITH IN-LINE AUTOMATIC PUNCHING UNIT *TWO MARK SENSORS Specification: HP-TS-28AUSR-SG-2L MAX. JUMBO ROLL WIDTH 1100 MM MAX. BAG WIDTH 360 MM X 2 LINES MAX. BAG LENGTH 700 MM MAX. BAG THICKNESS 0.008 - 0.060 MM (EACH LAYER) MAX. PRODUCTION SPEED 300 PCS/MIN. X 2 LINES = 600 PCS/MIN. SERVO MOTOR & DRIVER FOR REAR FEEDING CONTROL 2 SETS FOR BAG LENGTH CONTROL 2 SETS FOR SEALING & CUTTING 1 SET FOR HAND OF PUNCHING UNIT 1 SET HP-TS-34AUSR-SG-2L MAX. JUMBO ROLL WIDTH 1300 MM MAX. BAG WIDTH 420 MM X 2 LINES MAX. BAG LENGTH 700 MM MAX. BAG THICKNESS 0.008 - 0.060 MM (EACH LAYER) MAX. PRODUCTION SPEED 300 PCS/MIN. X 2 LINES = 600 PCS/MIN. SERVO MOTOR & DRIVER FOR REAR FEEDING CONTROL 2 SETS FOR BAG LENGTH CONTROL 2 SETS FOR SEALING & CUTTING 1 SET FOR HAND OF PUNCHING UNIT 1 SET​​ ​ ​ HP-TS-40AUSR-SG-2L MAX. JUMBO ROLL WIDTH 1500 MM MAX. BAG WIDTH 500 MM X 2 LINES MAX. BAG LENGTH 1000 MM MAX. BAG THICKNESS 0.008 - 0.060 MM (EACH LAYER) MAX. PRODUCTION SPEED 300 PCS/MIN. X 2 LINES = 600 PCS/MIN. SERVO MOTOR & DRIVER FOR REAR FEEDING CONTROL 2 SETS FOR BAG LENGTH CONTROL 2 SETS FOR SEALING & CUTTING 1 SET FOR HAND OF PUNCHING UNIT 1 SET
