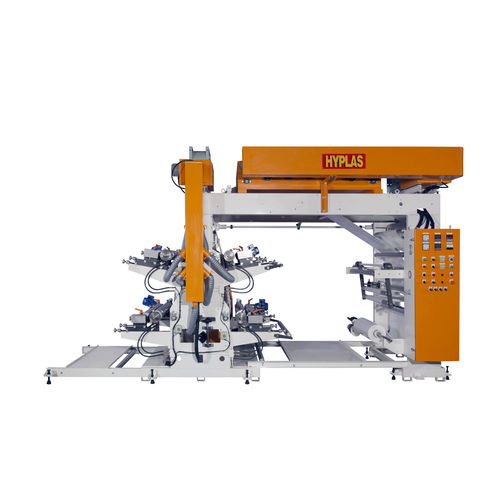

In-line flexographic press HP-FG (IN) SERIES (4 COLORS)
4-colorfor paperfor packaging

in-line flexographic press
in-line flexographic press
Add to favorites
Compare this product


Characteristics

Type
in-line
Number of colors
4-color
Application
for paper
Other characteristics
for packaging

Description

FLEXOGRAPHIC FOUR COLORS IN-LINE PRINTING MACHINE Main Features: MAX. PRINTING SPEED 85 M/MIN. Specification: HP-FG600-4(IN) MAX. PRINTING SPEED 85 M/MIN. PRINTING WIDTH 600 MM MAX. FILM PASSING WIDTH 650 MM PRINTING AVAILABLE 0+4, 1+3, 2+2 MAIN MOTOR 5 HP INVERTER (FOR SPEED CONTROL) 5 HP HEATER 30 KW DRYING BLOWER 2 HP X 1, 1 HP X 1 ​ HP-FG800-4(IN) MAX. PRINTING SPEED 85 M/MIN. PRINTING WIDTH 800 MM MAX. FILM PASSING WIDTH 850 MM PRINTING AVAILABLE 0+4, 1+3, 2+2 MAIN MOTOR 5 HP INVERTER (FOR SPEED CONTROL) 5 HP HEATER 30 KW DRYING BLOWER 2 HP X 1, 1 HP X 1 ​
