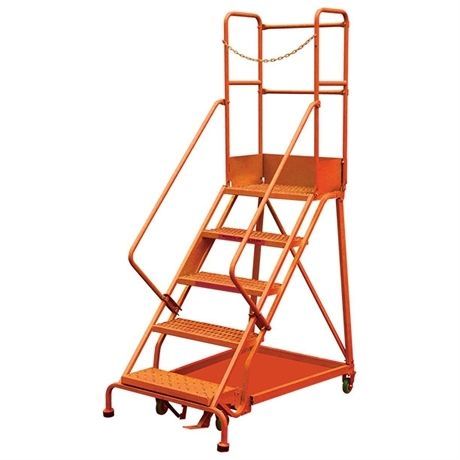

Mobile step ladder RLC series

wheeledrollersteel

Product Overview
The RLC rolling safety ladder provides safe access to elevated work areas in industrial environments. Constructed in steel with wide slip-resistant treads and a large top platform, it is designed for warehouses, factories, maintenance and order-picking operations.

Details

• Working height: between 3020 mm and 6170 mm depending on number of steps
• Step width: 245 mm
• Top platform dimensions: 600 x 430 mm
• Steel structure suitable for industrial use
• Weight-activated step-lock secures ladder to floor when in use
• Large top platform for safe working area
• Slip-resistant wide steel steps
• Safety chain
• Two lateral handrails and platform guardrail with high handrails and mid-rails
• Available with 4 to 12 steps (top platform counts as a step)
• Delivery requirement: requires an unloading dock; if unavailable, shipment on truck with liftgate possible

Advantages

• Steel construction delivers high strength and stability for industrial applications
• Weight-activated step-lock automatically secures ladder to floor during use
• Wide 245 mm slip-resistant treads for safe and comfortable footing
• Large top platform provides ample secure working space
• Lateral handrails, high guardrails, mid-rails and safety chain enhance operator safety
• Multiple step configurations (4 to 12 steps) cover a range of working heights
• Rolling design with castors enables easy repositioning when not in use
• Suitable for warehouses, industrial plants, maintenance and order-picking

Models & Dimensions (table)
Model No | Capacity kg (lb.) | No. of Steps | Height to Top Step (mm) | Castor/Wheel (mm) | Overall Dimensions (mm)
RLC3512 | 160 (352) | 12 | 3090 | Ø100×30 | 3000*880*4170
RLC3510 | 160 (352) | 10 | 2560 | Ø100×30 | 2350*880*3640
RLC358 | 160 (352) | 8 | 2050 | Ø100×30 | 2100*880*3130
RLC357 | 160 (352) | 7 | 1780 | Ø100×30 | 1890*880*2890
RLC356 | 160 (352) | 6 | 1530 | Ø100×30 | 1670*880*2610
RLC355 | 160 (352) | 5 | 1290 | Ø100×30 | 1450*880*2370
RLC354 | 160 (352) | 4 | 1020 | Ø100×30 | 1220*880*2100

Technical characteristics / Specifications

• Series: RLC
• Structure: steel
• Step width: 245 mm
• Top platform: 600 x 430 mm
• Step configuration: 4 to 12 steps (top platform counts as a step)
• Working height range: 3020 mm – 6170 mm (depending on steps)
• Load capacity per model: 160 kg (352 lb)
• Castors: Ø100×30 mm
• Safety features: weight-activated step-lock, lateral handrails, platform guardrail with high handrails and mid-rails, safety chain
• Overall dimensions vary by model (see models table above)
