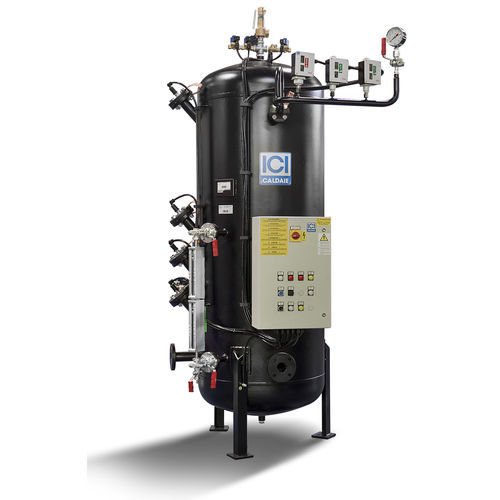

Air vessel VEA series

nitrogenpressure

The VEA expansion vessel has been designed to absorb the volumetric variations of the water in the system, due to the temperature increase. The system is kept at a certain air/nitrogen pressure, according to the operating pressure of the hot water or super-heated water boiler. It usually tops up the supply to super-heated water boilers. The VEA expansion vessel complies with the PED Directive 2014/68/EU. Provided with: - steel sheet supporting legs - hatch, connections and fittings - external finish with paint Standard equipment: Air or nitrogen supply including: 1 air/nitrogen intake solenoid valve 2 nitrogen release solenoid valves 1 non-return valve Pressure control instrumentation including: 1 safety valve certified according to PED Directive 2014/68/EU 1 pressure gauge with three-way test valve 1 feed pressure switch 1 vent pressure switch 1 safety pressure switch with manual reset, approved according to PED Directive 2014/68/EU Level control instrumentation including: 1 refilling pump start probe (pump not supplied) 1 refilling pump stop probe (pump not supplied) 1 low level alarm probe 1 high level alarm probe 1 level indicator
