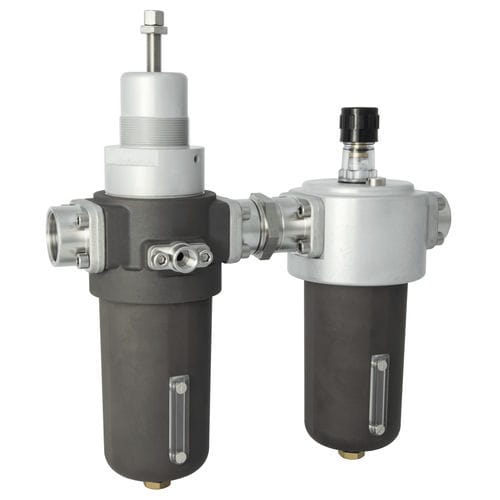

Gas filter-regulator-lubricator 210G2

compressed aircartridgealuminium

Filter-regulator + oil fog lubricator group for inlet pressure up to 30 bar (435 psi). Connections: 3/4”-F 1” –F 1” 1/4-F 1” 1/2-F GAS or NPT, by flanges screwed to the body. Connections with EN or ASME flanges available on request. Filter regulator has a piston to control outlet pressure, balanced main valve and relieving overpressure function. Available automatic condensate drain (SAI) or semi-automatic drain (SS), for pressure up to 16 bar (232psi). Manual drain (SM) or cap for pressure up to 30 bar (435 psi). The oil rate can be adjusted by a knob or screw at the top of the lubricator. The product complies with the 2014/68/EU PED directive. IN/OUT Connection 3/4”-F | 1”-F | 1” 1/4-F | 1”1/2-F (GAS/NPT) | UNI EN 1092-1 | ASME B16.5 CV (CEI EN 60534-2) - 9,7 US gal/min Outlet Pressure Range 0,2 ÷ 1,5 | 0,3 ÷ 3 | 0,8 ÷ 8 | 1,5 ÷ 15 bar Weight ~9,7 lb Plug Leakage Class “A” class (UNI EN 12266-1) Pressure Gauge Connection - G 1/4”-F | G 1/8”-F | 1/4”NPT-F | 1/8”NPT-F Certifications PED 2014/68/UE | EAC TR CU 010 Seals Material NBR | FPM | FVMQ | FFKM Accesories - Pressure gauge | Wall mounting bracket
