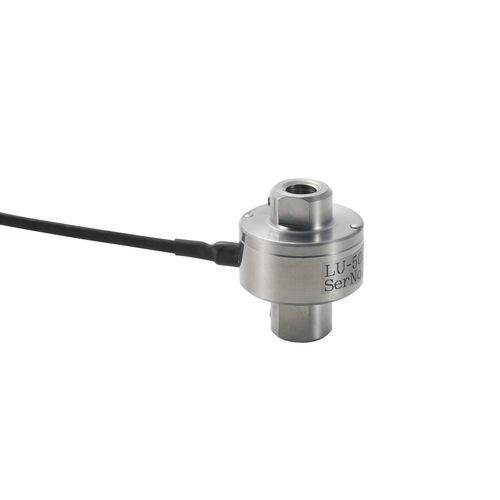

Tension/compression load cell Small Type Compression and Tension Load Cells LU series
canisterstrain gaugeanalog

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


strain gauge
Output signal
Other characteristics
compact, small, miniature
Rated force

Min.: 50 N

Max.: 2,000 N


Specifications -You can use it for both tension and compression -It ranges widely in capacity from 50N to 2000N -It offers high accuracy: +/-0.2%F.S. Features LU series load cell is designed especially for incorporation into equipment/facilities. -You can easily screw it to mount on your equipment/facility with 2 M8 screws (female). -The sensor size is only φ28 mm therefore you can incorporate it in a small space. We offer 4 kinds of amplifiers. All of the models are equipped with input/output functions, thus, you can interlock it with your equipment/facilities. Model 1.Desk top model: FA Plus 2.Sensor interchangeable model: eZT series 3.Handheld model (Advanced): ZTA series 4.Handheld model (Standard): ZTS series Input/Output functions -They can handle input/output via USB, RS232C, Analog, and more -They can output OK/NG judgement, Peak hold, Overload If required, you can send the measured data to PC at 2000Hz via USB cable and draw graphs of measured data on a dedicated software. Due to the high sampling rate, it shows you even a tiny variation, and detect peak value accurately. We have confidence to offer the best force measurement solution using know-how accumulated over 65 years, so don’t hesitate to contact us if you have any concerns like mentioned-below… -I need to do force measurement, but have no idea how to do it.-How should I get the load cell built in to my equipment? -Which amplifier should I choose?-Which attachment should I use? -I have not decided whether to buy or not, but I would like to know the price. Etc.


No catalogs are available for this product.

See all of IMADA‘s catalogs
