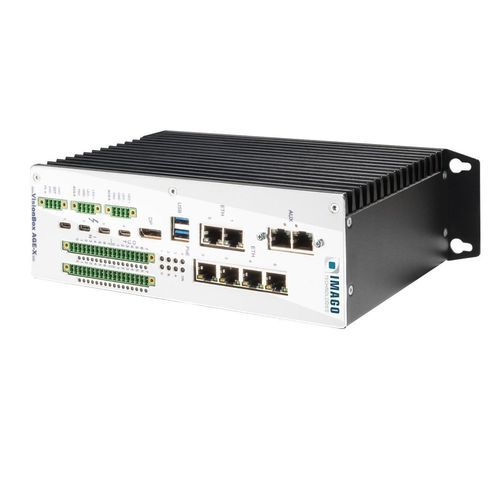

Expansion PC Vision Box AGE-X6

Edge AIAIGPU

The Vision Box AGE-X6 is a modular platform for industrial and AI image processing designed for robust, continuous operation and scalable performance through modular expansions.

Description
The AGE-X6 is a compact, passively cooled industrial PC (IPC) platform that integrates classical image processing and AI workflows in a single housing. It supports open software architectures and allows performance scaling via modular external expansions without changing the base system.

Benefits

• Modularity: GPU performance and interfaces can be expanded via USB4 ports, enabling upgrades without replacing the base system.
• Scalable vision & AI compute: Configurable CPU options (Intel® 14th Gen) and support for external GPUs to match application needs.
• Real-time synchronization: Integrated Real Time Communication Controller (RTCC) for precise camera, lighting, I/O and conveyor timing.
• Maintenance-free 24/7 operation: Fanless, compact design for continuous use in harsh industrial environments.
• Versatile interfaces: USB4 backbone for GPUs, high-speed storage and cameras, plus standard industrial I/Os, network interfaces and encoder ports.

Applications
The AGE-X6 is suited for demanding, synchronized and scalable vision tasks. Typical use cases include multi-camera systems, track & trace, synchronized inspection and high-speed real-time analysis.

• Pharmaceuticals – adjust performance via modular GPU expansion without full re-certification.
• Food & Beverage – parallel processing of multiple image sources for foreign object detection, label inspection and code verification.
• Webbed materials – inspection of reflective or moving web materials using high CPU/GPU performance and RTCC synchronization.
• Packaging & Logistics – multicode recognition on pallets and high-resolution data processing for efficient logistics.
• Printing – real-time monitoring of color, register and print quality using CPU/GPU combinations.

Target group
Machine builders, system integrators and series machine manufacturers needing a flexible, high-compute platform for Windows or Linux environments. The unified housing, software and cabling simplify multi-system deployments while performance scales where required.

Documentation

• Product specification (PDF): Specification_vb-agex-6_v_1_3_Vision-Box-AGE-X6.pdf
• Hardware Manual (PDF): VisionBox_AGE-X6_HardwareManual_v1.0.pdf

Characteristics / Technical specifications

• Model name: Vision Box AGE-X6
• Manufacturer / Brand: IMAGO Technologies GmbH
• CPU family: Intel® 14th Gen Embedded (configurations from Pentium to Core i9)
• Modular expansion: up to 4x USB4 ports as expansion backbone
• USB4 throughput: up to 40 Gbit/s per USB4 port
• External expansion: supports external GPUs, high-speed storage and camera interfaces via USB4
• Cooling: fanless / passively cooled IPC for 24/7 operation
• Real-time: integrated Real Time Communication Controller (RTCC) for camera/lighting/I/O/conveyor synchronization
• Software: open architectures; supports Windows and Linux
• Interfaces: industrial I/Os, network interfaces, encoder ports and GenICam-compatible camera support
• Industry standards: GenICam, OPC UA, EtherCAT
• Form factor: compact industrial PC platform focused on long-term availability and modular upgrades
