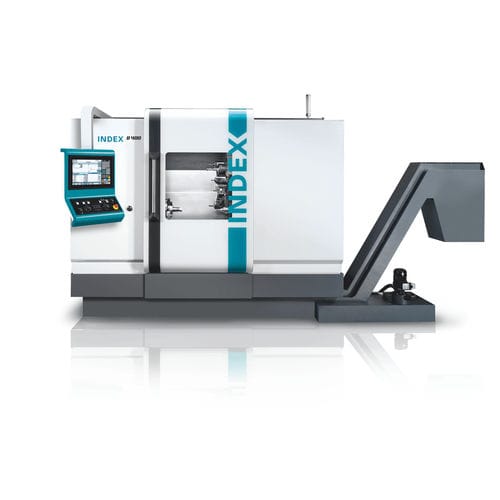

Universal turning machine B400
CNC2-axis3-axis

universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
universal turning machine
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis, 3-axis
Number of tool stations
12 tools
Other characteristics
universal, powerful, precision, spindle, Y-axis, rigid
Diameter

315 mm
(12.4 in)

Spindle speed

4,000 rpm
(25,132.741 rad.min-1)

Maximum part length

750 mm
(30 in)

Bar capacity

82 mm
(3 in)

Axe X

360 mm
(14 in)

Axe Z

750 mm
(30 in)

Rapids on Z

8,500 mm/min
(6 in/s)

Nominal power

16 kW, 24 kW
(21.8 hp, 32.6 hp)

Maximum torque

375 Nm, 550 Nm
(277 ft.lb, 406 ft.lb)

Overall lenght

3,252 mm
(128 in)

Overall width

1,900 mm
(75 in)

Overall height

2,290 mm
(90 in)

Weight

7,800 kg
(17,196 lb)

Description

Clearly structured and ergonomic work area concept Rigid mineral cast bed in 45° monoblock design for high accuracy Work spindle with belt drive for high torques Bar capacity dia. 82 mm, chuck up to dia. 315 mm Orthogonal, linear Y-axis for high accuracy NC tailstock with electrically controlled axis Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen - based on Siemens S840D sl Structured machine design The INDEX B400 represents a logical further development of proven manufacturing solutions within the INDEX Group. Individually equipped, this new flexible universal lathe takes its place both in tooling and prototyping, but also in production Decades of accumulated know-how is reflected in numerous design details, such as in a pocket in the panel above the mainspindle which ensures collision-free use of long boring bars. Ergonomic operating concept The generously dimensioned work area ensures best accessibility for setup of the INDEX B400. Main spindle and tool turret can be accessed easily allowing fast and flexible setup and changeover. The sophisticated work area concept with steep-sloping and smooth covers provides for the ideal chip flow and prevents chip nests. Highlights Fast setup Excellent access to thework area Good chip flow The patented INDEX W-serration for high change and repeat accuracy of the tool. Short tooling/setting-uptimes High change accuracy bylong fixing grooves Extended life of cutting inserts DIN 69880-compatible Ideal for a wide range of parts With the universal turning machine B400, it is possible to machine a wide variety of workpieces from bars up to dia. 82 mm and in the chuck up to dia. 315 mm.
