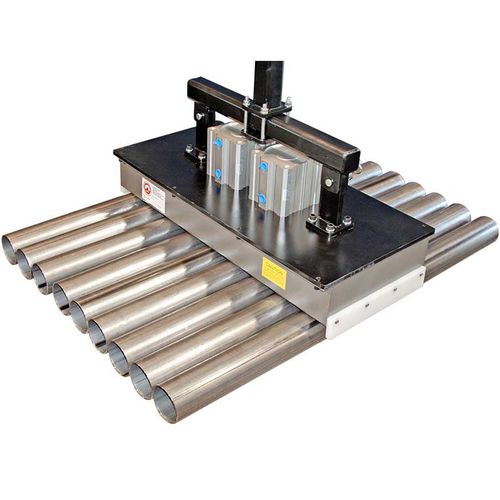

Magnetic lifting beam

for pipesfor tubescustom

Our Magnetic Tube Lifters are designed to assist in stacking, destacking, loading and unloading for a variety of tube and pipe applications. This is a permanent magnet that requires a simple burst of shop air to release the row of tube or pipe. In the result of a loss of shop air, the Tube Lifter is designed to remain in a "failure safe" mode, without the need for a battery backup system; simply put, the magnet will not drop the tube or pipe, ensuring safer working conditions. The Tube Lifter is ideal for hydroforming, roll-forming, packing, cutting or tube and pipe fabrication applications. Benefits •Simple burst of air is required to GRIP or RELEASE •Works on round, square & custom shaped tubing •Operates on 85 PSI shop air •Destacks nested tubing •Reduces cycle times in many tube handling applications •Failsafe design (No battery backup required) Features •Powerful, rare earth magnetic circuit •Stainless steel housing •100mm air cylinders with 3/8" NPT ports – cylinder size based on application •Unique magnetic circuit prevents tubes from rolling or shifting during transport Options •Available with custom cylinders, magnetic circuits and pick-up points •Spreader system for mounting magnets •Protective magnet covers for polished, plated & painted tubing
