Horizontal steam generator IV series
three-pass

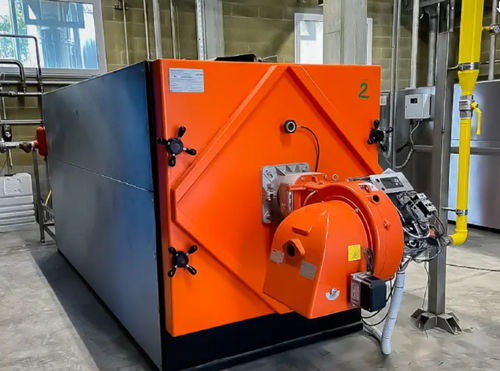

Horizontal steam generator - IV series - INGAUNA VAPORE SRL - three-pass
Horizontal steam generator - IV series - INGAUNA VAPORE SRL - three-pass
Add to favorites
Compare this product

Characteristics

Configuration
horizontal
Other characteristics
three-pass
Power

Min.: 155 kW

Max.: 2,250 kW

Steam production

Min.: 200 kg/h
(440.92 lb/h)

Max.: 3,000 kg/h
(6,613.87 lb/h)

Pressure

Min.: 1 bar
(14.5 psi)

Max.: 11.76 bar
(170.56 psi)

Empty weight

Min.: 600 kg
(1,322.8 lb)

Max.: 4,800 kg
(10,582.2 lb)

Description

Type: three-pass smoke coil, horizontal execution, forced circulation Temperature: 20 C° - 190.7 C° Standard equipment: Burner power cut-off thermostat Water/steam side block pressure switch Steam/fumes side block thermostat INAIL approved safety valve Water side block level switch Water-steam inlet heat exchanger
