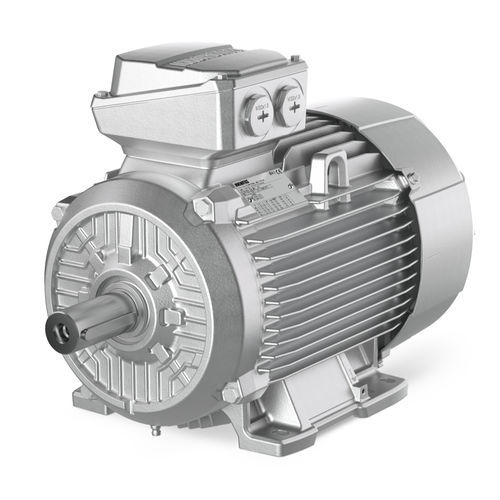

Motor for marine applications DP
ACasynchronousrugged

motor for marine applications
motor for marine applications
motor for marine applications
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Protection class
rugged, for hazardous areas
Configuration
aluminum, cast iron
Applications
for pump, for compressors, for marine applications, for winches, for offshore applications
Other characteristics
low-voltage, high-efficiency
Power

Max.: 1,600 kW
(2,175.394 hp)

Min.: 0.37 kW
(0.503 hp)

Torque

Max.: 10,300 Nm
(7,596.8901 ft.lb)

Min.: 0.61 Nm
(0.4499 ft.lb)

Rotational speed

Max.: 3,600 rpm
(22,619.47 rad.min-1)

Min.: 750 rpm
(4,712.39 rad.min-1)

Description

Going beyond the standard program, sector motors offer a precisely fitting solution to address individual requirements. Every sector has its own requirements when it comes to drive technology. As full-line supplier and based on our many years of experience we precisely understand these requirements. The precisely fitting solution to address your specific requirements We are always on the search for innovative solutions to achieve optimum cost effectiveness. This is why, in addition to our standard program, we also offer Definite Purpose motors. These fully satisfy all sector requirements, therefore guaranteeing the highest degree of efficiency. Marine motors Full speed ahead Salt-laden air and high humidities can place a lot of stress on electrical equipment installed in systems on ships and in coastal areas. This is the reason why renowned marine classification societies formulate strict regulations regarding supplementary qualifications also for electric motors. Innomotics DP marine motors satisfy the specifications of leading marine classification societies (BV, DNV, GL, LR, RS, KR, ABS, RINA). For example, they are fully adapted to operate at higher ambient temperatures below deck. When required – or if the society`s regulations specify it - a representative of the marine classification society can be present in our factories to formally accept equipment. We also have motors specifically designed for on-deck operation. These have been designed so that they reliably function even when briefly flooded by waves.
