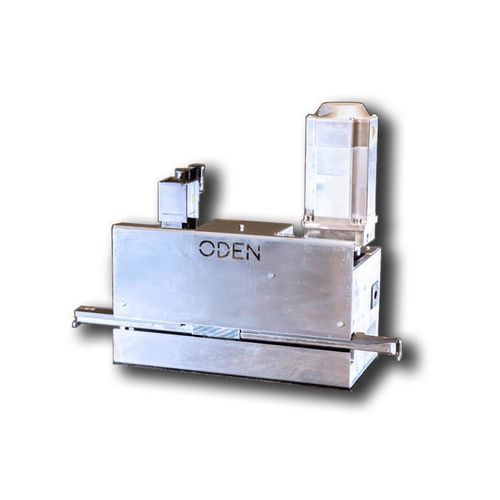

Plastic strap strapping head ODEN SMARTDRIVE

for PP-PET strapswith weldingelectric

Product overview
Discover the ODEN SMARTDRIVE strapping head, developed and patented by Innova Group. ODEN is a universal integration strapping head with a lightweight, compact design and advanced electronics that enable installation on Innova systems and equipment from other brands. It delivers high performance and precision via torque-control technology for tension adjustment, includes fewer mechanical components, is sensorless, and requires reduced maintenance.

Key features

• Easy integration with other strapping systems: patented technology allows adaptation to third-party equipment and compatibility with different PLC systems.
• Starter Kit available: includes the head and connection drivers. Optional elements depending on requirements: touchscreen HMI, strap frame, strap unwinder, and a strapping verification system.
• Lightweight and compact design: one of the lightest heads on the market, improving energy efficiency for applications that require lifting the strapping system.
• Reduced wear and maintenance: designed without clutches, brakes or many pulleys; fewer parts reduce maintenance needs and costs (maintenance ~30% cheaper due to fewer replaced parts and reduced wear).

Web display and remote management

• Web access to control and configuration interface
• General cycle settings
• Editing and viewing strapping recipes
• Manual control of the head
• Viewing the position of the strapping cycle
• Diagnostics: viewing warnings and alarms for the head
• Counters / production history for strapping
• Counters / history for consumables

Performance and precision
The head incorporates a servomotor with positioning control for strapping application, tension control and torque-control technology that enables faster and more accurate maneuvers, reducing cycle times and increasing packaging line productivity. Intelligent strap arrival detection allows strap retraction and repeat maneuvers after collisions during launch, and controlled stops enable strapping closer to or further from the load.

Maintenance & durability
ODEN is sensorless and designed without traditional wear components such as clutches and brakes; it also has fewer pulleys, reducing the risk of belt jams. Its compact aluminum chassis simplifies component replacement and lowers maintenance costs.

Technical specifications

• Model: ODEN SMARTDRIVE
• Strap welding: Electrical resistance welding
• Operating strap dimensions: 9 - 12 - 16 mm (3/8 in, 1/2 in, 5/8 in)
• Strap thickness: 0.55 - 0.75 mm (0.022 – 0.030 in)
• Strap material: Polyester (PET) or Polypropylene (PP)
• Maximum strapping tension: Up to 2050 N
• Strapping tension adjustment: By servomotor with torque control
• Head dimensions: 640 x 478 x 239 mm (25.2 × 18.8 × 9.4 in)
• Head weight: 50 kg (110 lbs)
