Thickness measuring system WARP 100

diameteralignmentoptical

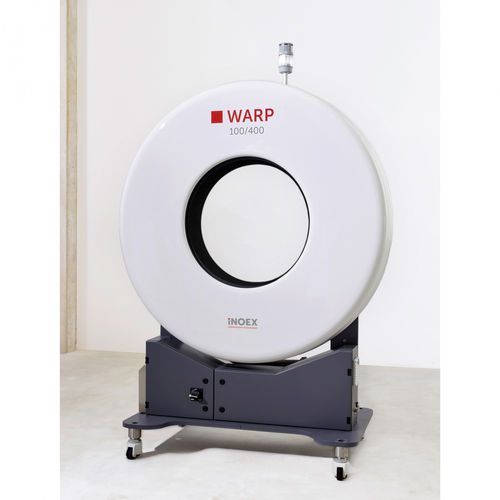

WARP 100 is an inline pipe measuring system for wall thickness and diameter measurement at up to 38 measuring points and 19 axes. More than 1100 measurements per second guarantee a gapless measurement. This is particularly important for pipes with high quality requirements, such as pressure or gas pipes. The maximum line speed for 100% coverage is up to 11.8 m/min. WARP 100 is available in three sizes and can be used for measurement in the diameter range from 25 to 630 mm. The static sensors are distributed around the pipe and continuously measure the pipe in parallel. The specially developed optics allow the alignment of the radar wave to be focused on the centre of the pipe. The sensors are arranged in such a way that the measuring spots overlap, thus ensuring close-meshed coverage in the extrusion direction. Measured variables such as wall thickness, diameter, ovality, eccentricity as well as process conditions (e.g. sagging) are precisely recorded, documented, and further used for automatic process control. Further advantages/features: Measurement with 100% pipe coverage in diameter range from 25 to 630 mm (three sizes) Wall thickness range from 2 up to 125 mm (depending on material) Detection of thin sections within the tube 100% documentation of production according to specifications
