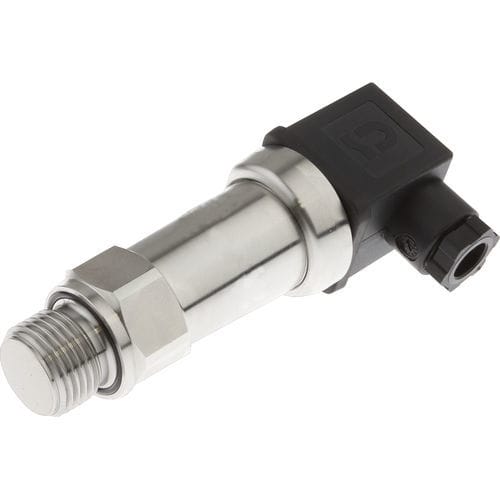

Relative pressure transmitter DT98C079

analog24 Vdc12 Vdc

pressure transmitter, Ø26mm 111long, 0-600bar, 8-32V DC, G1/2 inch A, -40-85°C, 4-20mA, Valve connector type A 2pin, IP65, V4A, Front-flush membrane Pressure sensors - Connection G1/2" outer Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications. Electrical features Response time 10ms Relative measurement accuracy 0,35% Type of analog output 4 mA ... 20 mA Short-circuit protection yes Reverse polarity protection yes Betriebsspannung (DC) 8 - 32V Number of pins 2 Temperature drift 0,75% Type of electrical connection Valve connector type A Measurement method Relative Mechanical features Bursting pressure 1.250bar Thread length 20,5mm Sensor length 111mm Nominal pressure 600bar Design Cylinder plain Degree of protection (IP) IP65 Sensing element material Stainless steel 1.4435 Ambient temperature -40 - 85°C Sensor diameter 26,5mm Thread pitch 1,81mm Max. operating pressure 600bar Type of pressure connection G1/2 inch A Front-flush membrane yes Housing material Stainless steel 1.4404 Other features Measuring display Relative
