Laser welding system

precisionintegratedprogrammable

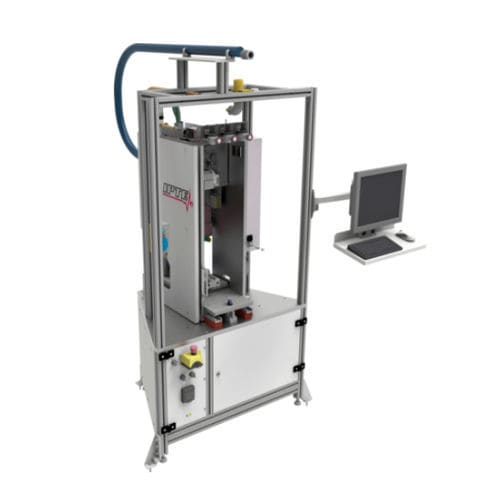

The In-Line Plastic Laser Welding system is developed for modular structured productions with a high quantity of products. This flexible usage is guaranteed through a quick change of product-specific carrier and the easy re-equipping of the layout-depending tools. The Plastic Laser welding unit is integrated into an automated cell, available for in-line operation. The un-welded product is delivered to the station on a carrier. The welding head is integrated into the cell. The welding head is designed with a robust C-frame that prevents mechanical deformation during press-on and ensures stability over time. The power laser diode is connected with an optical fiber to the galvanometer head. The laser welding method used is a quasi-simultaneous welding principle. The laser beam is deflected by a fast scan head through a lens to position and focus the spot onto the required seam contour of the product. The contour is scanned repeatedly during the welding process. • Quasi-simultaneous welding • Short cycle times • Easy exchange of clamping unit (SMED) • Easy programming (TS1) • Precision collapse measurement • Sturdy C-Shape • Integrated lift mechanism Options • Different conveyor systems (carrier, PCB, pallet) • Pendant Tool • Fume extractor and flow detection • Laser Power measurement tool • Press Force measurement tool • Marking block tool with exchangeable marking plates
