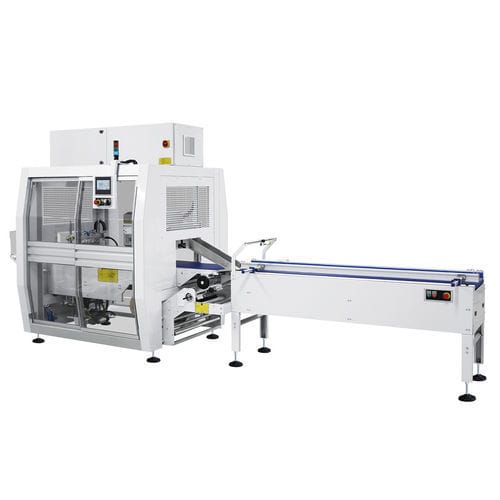

Automatic packaging machine SI750S-LR

servo-drivenwith conveyorpneumatic

Overview
The automatic flow pack packaging machine SI750S-LR is an intermittent-motion packaging system equipped with a motorized low reel holder and a 350 mm transverse sealing bar. Designed for Industry 4.0 and IoT-ready platforms, it handles a wide range of products including large items.

Main capabilities
The machine packages products up to 200 mm in height in single or laminated flexible film at an indicative production speed of 0–40 products/min (variable depending on product size, package format and film type). It uses film reels up to 750 mm (ø 350 mm) and a 2000 mm infeed conveyor with adjustable guides and easily removable interlocking paddles. Product sliding surfaces are AISI 304 stainless steel.

How it works
The process is driven by three pairs of pneumatic driving wheels that perform film pulling, longitudinal sealing and folding, combined with a dynamic/adjustable film conformer supplied with accessories. A 350 mm cross sealing bar is controlled by an intermittent-motion servomotor. The outgoing product belt is motorized with height adjustment via handwheel.

Use and versatility

• Suitable for large products
• Wide range of packable products
• Fast and simple packaging process
• Optional systems for gas injection or nebulization of preservative aromas for extended-life products

Key selling points

• Motorized low reel holder
• 350 mm transverse sealing bar
• 2000 mm infeed conveyor with adjustable guides
• Sliding surfaces in AISI 304 stainless steel
• Easily removable interlocking paddles
• Longitudinal sealing by 3 pairs of driving wheels (film feed / welding / folding)
• Dynamic film conformer as standard

Control system and electronics
FLXMOD® control system with operator interface via industrial Panel PC and 7" color wide touchscreen. Includes IN/OUT modules for digital/analog signals and thermocouple inputs. Features electronic film tension control, product-height program storage, three sealing temperature settings (longitudinal, upper transverse, lower transverse), electronically adjustable conveyor speed and production/process statistics. Stores up to 50 work cycles.

Compliance and safety
Emergency stop included, reduced energy consumption and CE conformity.

Technical specifications

• Model: SI750S-LR
• Power supply: 220–240 / 380–415 V
• Power frequency: 50 / 60 Hz
• Supply voltage: 3PH + PE / 3PH + N + PE
• Installed power: 6400 W
• Air pressure: 6 bar
• Sealing bar width (cross): 350 mm
• Maximum product height: 200 mm
• Production up to: 40 ppm (depending on product/format/film)
• Coil holder positioning: motorized low reel holder
• Maximum reel dimensions: 750 – ø 350 mm
• Machine size: 5020 x 1580 mm, height 2155–2255 mm
• Net weight: 900 kg
• Infeed conveyor: 2000 mm with adjustable guides and removable interlocking paddles
• Sliding surfaces: AISI 304 stainless steel
• Longitudinal sealing: 3 pairs of driving wheels (film pull / welding / folding) with pneumatic opening
• Drive options: inverter-controlled asynchronous motor or independent brushless motors for belts and welders
• Additional features: product debris collection drawers, programmable center-seal height variation
