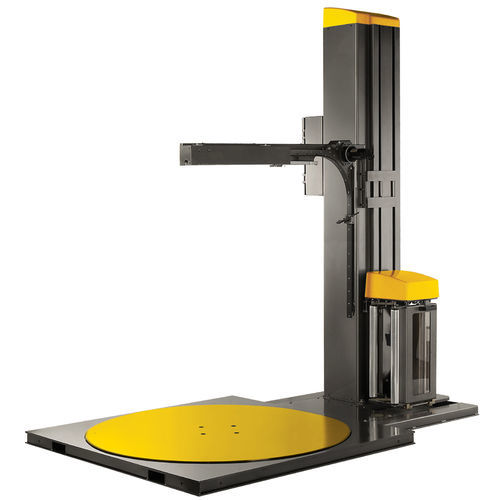

Turntable stretch wrapper ECOSPIR MATIC

semi-automaticpalletstretch film

To further widen the range of pallet-wrapping systems, Italdibipack Group has introduced a NEW pallet-wrapper that functions electrically (compressed air is not required) and is equipped with an exclusive cut and clamp device PAT so that the stretch-wrapping cycle is fully automatic. The wrapping cycle starts and ends at the top of the pallet; this uniquely different approach to attaching and cutting the stretch-film provides the following advantages: • Selectable top banding capability • Stabilizes the load early in the wrap cycle • Places the ending film tail at the top of the load instead of the bottom • Eliminates the need of a film clamp power source on the turntable (therefore less maintenance; no need of compressed air with hook-ups or noisy compressors) • Easier, faster and safer positioning of the load on the turntable (no clamp or other systems that can be damaged)MAIN FEATURES: • Working functions and operations controlled by a PLC, with touch-screen Operator Interface • Power Off / On – Reset switch and Power-On indicator light • Single button Auto Wrap cycle Start/Pause • Machinestatus visual indicator (run; clear or fault) • Selection among three (3) different types of wrapping : automatic / semi-automatic / top banding • Photo-eye for the automatic load height detection • Separate setting of the top and bottom wraps, from 1 to 12 revolutions; • Variable turntable speed control (adjustable from 3 to 15 rpm), with a soft start acceleration and a final revolution deceleration with positive stop alignment • Film tension control • Broken film/run-out of film detection with automatic machine reset • Separate film carriage raise and lower speed controls
