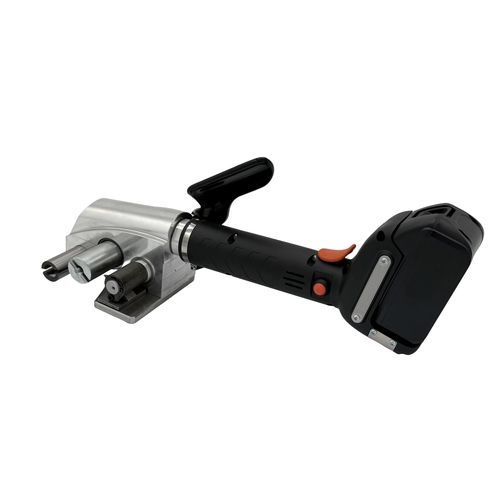

Battery-powered strapping device and tensioner ITA 71

for composite straps

Short description
Tensioner for textile straps. Battery operated.

Suitable for

• 19 – 40 mm Textile (Woven & Composite)

Tension Force – Max

• 11000 N

Features

• Battery operated tool (portable, no air or fixed power connection)
• Suitable for all textile straps up to 40 mm
• Integrated cutting unit
• Aluminium cast body
• Adjustable tension via potentiometer under the battery
• Low maintenance design

Benefits

• Adjustable tension for different applications
• Integrated cutter reduces handling time
• Fast and efficient tensioning cycle
• Portable operation for use in any transport environment

Description
ITA 71 is a battery-operated tensioner designed for textile straps up to 40 mm width. The potentiometer placed under the battery allows adjustment of the tensioning force up to 11000 N without unwanted variation during operation. ITA 71 includes an integrated cutting unit and an aluminium cast body for long service life and low maintenance. Its portable design secures goods for any transport and can operate where compressed air or fixed power is not available.

Technical specifications

• Model: ITA 71
• Operation: Battery operated
• Suitable strap width: 19–40 mm (Textile, Woven & Composite)
• Maximum tension force: 11000 N
• Tension adjustment: Potentiometer under the battery
• Integrated cutting unit: Yes
• Body material: Aluminium cast
• Maintenance: Low maintenance required
