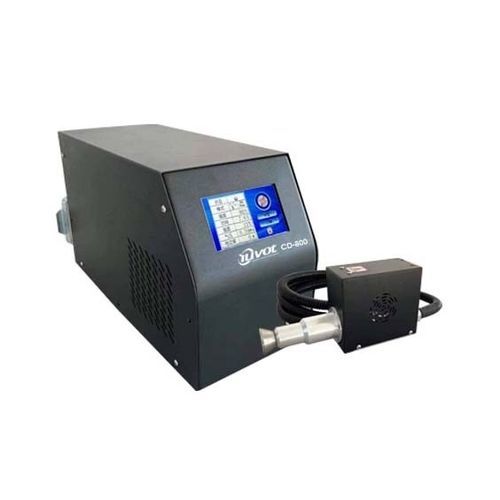

Plasma cleaning machine CD-800

manualindustrial

It is a low temperature and high efficiency on-line plasma processing equipment. The rotating nozzle makes the output plasma even and the temperature is lower. Can replace the high energy consumption, high pollution of traditional surface treatment technology (flame, chemical solvent corrosion, spray primer) Weight: 13kg Color: Yellow/black Input power supply "100-240VAC/10A" Standby power consumption: < 50W Setting screen: Key + key lock/touch screen + password Power adjustment range: 10-100% Controller back-end serial port: pedal, single-chip microcomputer, PLC, RS232/RS485/TCP Number of gun heads: 1PCS Gas pressure: 0.2-0.4mPa Working air inlet Connector: 6mm Connector Dimensions (width * length * height): L380*W170*H220 mm Cooling gas usage: Nz: 50 6L/min CDA:56 6L/min Working gas usage: N2: 40 soil 6L/min CDA: 46 soil 6L/min Plasma effective diameter: 2-10mm /60-100mm (depending on conditions and sample) Plasma output power: 400-500W 800W-1000W (ground resistance<0.5 ohms) Power supply: AC220V/5A, 50-60Hz, single-phase AC + ground cable, power consumption 500W/1000W Configuration space: Store in a well-ventilated place with an ambient temperature of less than 30 degrees Celsius. Reserve the space with more than 150mm heat dissipation on the left and right side, and reserve the 150mm line space behind Controller functions Option functions enable: 1. Plasma grab does not work alarm 2. Display gun power value in real time 3. Size customization 4. Real-time air pressure monitoring Product advantages: 1. Intelligent control
