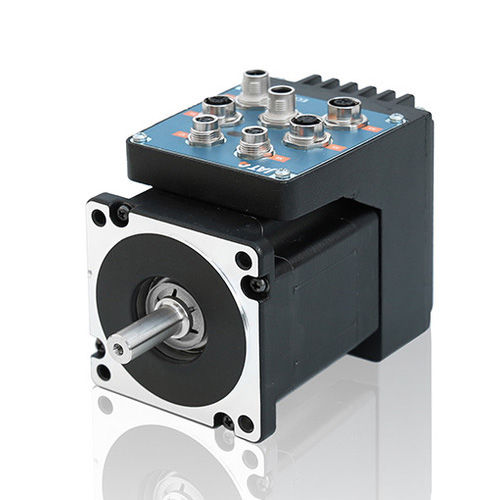

DC servomotor ECOMPACT E100synchronouswith brakemodular
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Configuration
- with brake, modular, NEMA 34, compact
- Number of poles
- multipole
- Other characteristics
- CANopen, with integrated controller, with built-in electronics, high-resolution, with built-in encoder
- Power
230 W
(0.313 hp)- Torque
3.3 Nm
(2.434 ft.lb)- Rotational speed
2,000 rpm
(12,566.37 rad.min-1)- Diameter
86 mm
(3.39 in)
Description
The ECOMPACT® 100 is a decentral servo drive with an integrated servo amplifier. The modular design of the device enables rapid customer-specific adaptation. Options such as, sensorless operation, holding brake, connection of an internal or external measuring system, various field bus interfaces are available. The power supply is 24-60 VDC. The direct mounting on the machine reduces the wiring complexity and the space required in the control cabinet.
Visit us at SPS!
Hall 4
Booth 4-358
VIDEO
