Medium excavator JS175W

wheeled

Overview

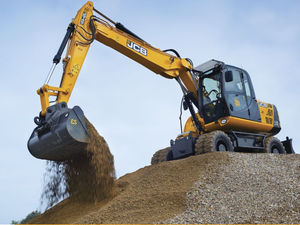

The JCB JS175W is a 17.5‑ton wheel excavator designed for heavy applications where strength, durability and versatility are required. The machine features a high‑strength rigid upper frame and a closed box‑section revolving frame to increase structural integrity and resistance to impact.

Strength and durability

• Heavy‑duty axles, dozer blade and stabilisers configured for demanding jobs.
• High‑strength rigid upper frame for enhanced support and long service life.
• Closed box‑section revolving frame reduces stress and improves impact resistance.

Comfort and ergonomics
The cab and controls are designed for extended operation: the steering column and control layout are independently adjustable to suit operators. Light, intuitive controls reduce operator fatigue. A joystick‑mounted power boost button provides quick access to extra hydraulic power, and a standard 7" full‑colour multifunction display gives immediate, readable machine information in all light conditions.

Serviceability
Maintenance points are arranged for fast, safe access. Filters are centrally located for quick servicing and a single‑point greasing system at ground level simplifies routine maintenance and daily checks.

Performance and efficiency

• Max engine power: 129 kW
• Max digging depth: 6.25 m
• Max dumping height: 7.57 m
• Travel speed: 30 km/h
• Operating weight: 18,982 kg
• Bucket capacity: varies with attachment

Safety

• Cab designed to reduce noise and vibration, with multi‑mount isolation to improve operator comfort and visibility.
• Pressurised cab and fresh‑air filtration help keep dust and contaminants out of the operator environment.
