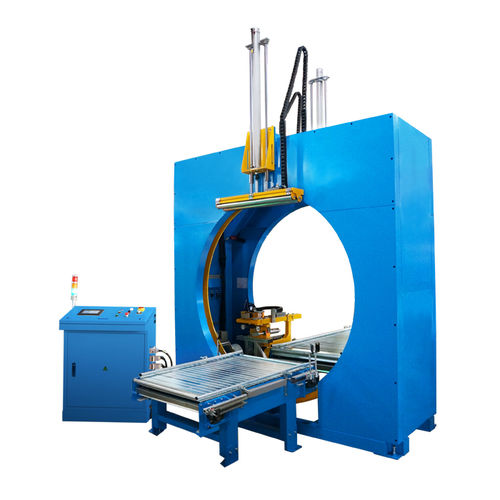

Orbital wrapping machine ALPHA-SPAfully-automaticfor the food and beverage industryfor plastic pipe
Add to favorites
Compare this product
Characteristics
- Type
- orbital
- Operating mode
- fully-automatic
- Product applications
- for the food and beverage industry, for heavy-duty applications, for plastic pipe, for the construction industry
- Other characteristics
- with conveyor
- Height
3,645 mm
(144 in)- Width
2,700 mm
(106 in)- Length
1,246 mm
(49 in)- Machine weight
1,500 kg
(3,306.93 lb)- Rotational speed
Max.: 30 rpm
(188 rad.min-1)Min.: 4 rpm
(25 rad.min-1)- Voltage
220 V, 230 V, 380 V, 415 V, 440 V
- Power
3 kW
(4.08 hp)
Description
Orbital wrapping design for long loads as timbers, aluminum bundles, plastic pipes.
Elongated loads travel to wrapping zone and stabilized by film wrapping and conveyor transmission. Intelligent design for consistent wrapping or specified positions as option.
Heavy duty appearance, frame made of forged steel, strong and reliable.
Stand- alone control box with HMI touch panel. Smart & user friendly.
Providing variety of film carriage configurations, suitable for film width 100/300/500 mm to fulfill with different needs.
Features
Rotating speed adjustable
Auto film clamp, cut system
Mechanical tension control
Carriage lift up, film roll easy change
Individual control box with HMI touch panel
Options
Top press
Heat sealing plate
