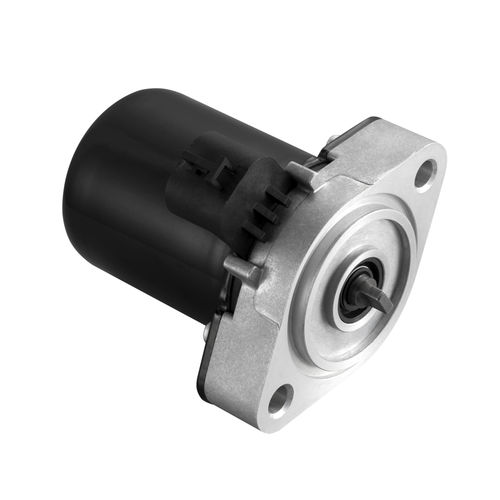

AMT gearbox actuator motor JK4434brushedDC24 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 12 V
- Configuration
- compact
- Applications
- for AMT gearbox actuators
- Other characteristics
- high-torque
- Power
Min.: 63 W
(0.09 hp)Max.: 214 W
(0.29 hp)- Intensity
Min.: 2 A
Max.: 8.75 A
- Torque
Min.: 0.221 Nm
(0.163001 ft.lb)Max.: 0.969 Nm
(0.714698 ft.lb)- Rotational speed
Min.: 1,645 rpm
(10,335.8398 rad.min-1)Max.: 3,506 rpm
(22,028.8477 rad.min-1)
Description
Performance Parameter: (1) 12V, 8.75A, 2711RPM, 0.221N.M, 63W. (2) 24V, 8.06A, 3506RPM, 0.328N.M.
Typical Application: AMT Gear-shifting Actuator.
Features: big torque, compact size, light weight, long life.
MOQ: 500PCS.
