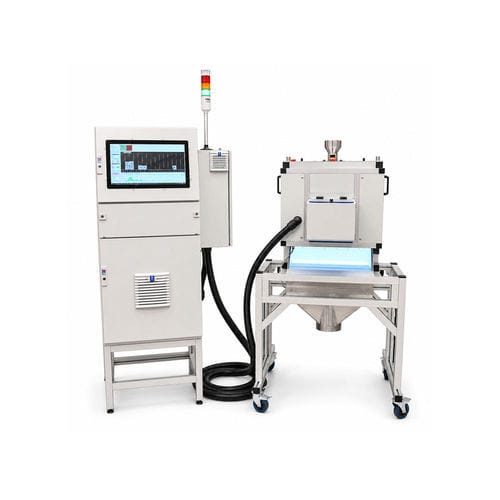

Video vision inspection system

cameraautomatedmeasurement

Overview
Realtime, continuous in-line inspection and sorting system for plastic pellets suitable for integration on:

• Compounding lines
• Cable extruder lines
• High-throughput resin lines — single units for monitoring/diverting or multiple units for sorting

Product Description
Inspec.tech provides an in-line inspection solution for plastic pellets using area-scan machine vision and professional lighting. The system features a compact mechanical design for straightforward integration into existing production flows, enabling continuous quality control, throughput optimization and automated diverting/sorting. Base throughput is 1,000 kg/h (2,200 lbs/h); standard systems are available up to 9,000 kg/h (19,800 lbs/h). Units are delivered fully assembled and ready for plug-and-play operation.

Problem Examples

• XLPE-insulated cable: failure at electrical testing — a single contaminated pellet can reject complex, high-value products
• Common pellet defects and contaminants (illustrated in product imagery): burnt material, specification deviations, gel, size/cut defects, cross-contamination, yellowing, color deviation

Solutions
The system uses area-scan cameras and controlled lighting to inspect pellets on both faces, imaging each pellet multiple times. Combined with robust image-processing algorithms, this delivers high detection rates while allowing easy mechanical integration and matching of system size to line throughput and sorting requirements. Systems arrive fully assembled for immediate commissioning.

Key Features

• Area-scan sensor technology — multiple images per pellet with dark and white background options
• Advanced algorithms tuned for pellet defect and contamination detection
• Plug-and-play delivery: fully assembled and ready to operate

SPECIFICATIONS (selected)

• Inspection resolution: 80 μm with two-sided inspection (50 μm optional)
• Throughput: base model 1,000 kg/h (2,200 lbs/h); systems available up to 9,000 kg/h (19,800 lbs/h)
• Contamination-free mechanical design: polished AISI 316 and UHMWPE internal parts
• No painted surfaces or screws in the material flow area
• Minimized external hinges and latches; pneumatic pistons in enclosed chamber
• Lip seals and bearing covers in UHMWPE; no rubber seals in product flow

3 System Sizes | Optimizing Throughputs and Sorting Performance
Hopper width / Production monitoring throughput / Recommended sorting throughput (small specks):
810 mm / 6–9 T/h / 3 T/h
540 mm / 4–6 T/h / 2 T/h
270 mm / 2–3 T/h / 1 T/h

SYSTEM SOFTWARE
Combined histogram and thumbnail views; LIVE VIEW vs REFERENCE to maintain consistent quality across runs and sites; trend views for minute-by-minute production status.

Our Unique Approach
Area-scan sensor architecture images each pellet multiple times using both dark and white backgrounds, increasing detection capability when paired with effective algorithms.

How it is Installed

• Inline gravity feed
• Inline vacuum loader
• Inline mobile installation

Technical specifications

• Inspection resolution: 80 μm (50 μm optional)
• Two-sided pellet inspection
• Throughput: base 1,000 kg/h; standard up to 9,000 kg/h
• Contamination-free mechanical design with polished AISI 316 and UHMWPE internal parts
• No painted surfaces or screws inside material flow
• Minimal external hinges and latches; pneumatic pistons enclosed
• Lip seals and bearing covers in UHMWPE; avoidance of rubber seals in product flow
• Available hopper widths: 810 mm, 540 mm, 270 mm
• Production monitoring throughput by size: 6–9 T/h, 4–6 T/h, 2–3 T/h
• Recommended small-speck sorting throughput by size: 3 T/h, 2 T/h, 1 T/h
• Delivered fully assembled and ready for operation
