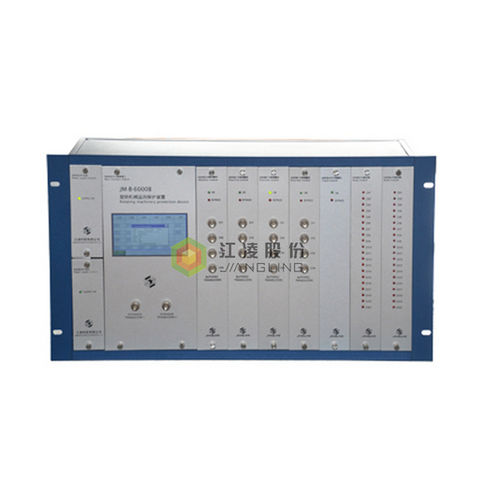

Rotary machine monitoring device JM-B-6000B

temperaturepressurepower

System description JM-B-6000B rotary machine monitoring protection device provides continuous monitoring functions and is applicable to all industrial rotary machines. It adopts frame structure, can connect with many types of sensors (acceleration, velocity, displacement, eddy-current) and process sensor (flow, pressure, temperature, analog quantity) and performs real-time monitoring and protection of units or machines. It features strong expansion capability and compatibility, easy installation and various performances and advanced functions unparalleled by other systems. This protection device is an intelligent system with configuration software and can perform configuration of monitoring parameters. The system features more stable and safer operation owing to redundant power source design. System Componets This monitoring system adopts intelligent module design. • - 6000B/05 Instrument Frame (Required) It adopts panel mounting. The left-most card slot is specially designed for power source and framework interface, the right-most card slot is for the two relay modules, and the other card slots can be inserted with monitoring modules. All modules are inserted into theframe baseplate, and wiring is performed at the rear frame. • - 6000B/90 One or Two Power Sources (Required) 6000B/90 is divided into AC and DC. The frame can use single power source. The redundant power source can be used when power interruption is not allowed. They are installed at the upper and lower part of the left-most card slot respectively. The redundant power source can adopt different types of voltage source. Each power source can be applied to power supply for the whole frame and modules.
