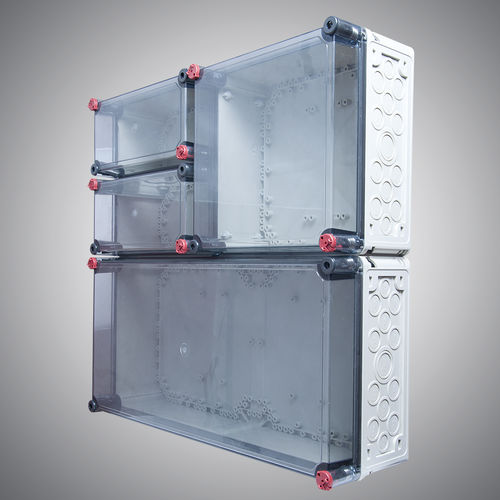

Splice box JL-J Series
wall-mountrectangularPC

splice box
splice box
splice box
splice box
Add to favorites
Compare this product

Characteristics

Construction
wall-mount
Configuration
rectangular
Material
PC
Other characteristics
splice, with transparent cover
Application
indoor, outdoor
Protection level
UV-resistant, waterproof, chemical-resistant, insulated, IP67, corrosion-resistant, flame-retardant, for harsh environments, halogen-free, high-strength, weatherproof
Width

150 mm, 300 mm, 600 mm (6 in)

Height

300 mm, 450 mm, 600 mm (12 in)

Depth

170 mm (7 in)

Description

◇ Insulated housing: Protection grade II. ◇ Enclosures are made by high-strength PC materials. ◇ The protection grade is IP67. ◇ The strength level is IK08. ◇ Ambient temperature: -40℃~+120℃. ◇ Flame retardant: V-2 grade. ◇ Anti-ultraviolet: suitable for installation in a direct exposure outdoor environment. ◇ Without halogen and silicon, resistant to rain, snow, ice and other corrosive environment. ◇ Chemical stability: acid, alkali, resistant to gasoline, resistant to mineral oil corrosion. ◇ Resistant to the corrosion of acid, alkali, gasoline and mineral oil. Note: only refers to the general description of chemical stability. In special condition, it may be necessary to check the chemical stability with other chemical substances as well as special environmental conditions (temperature, concentration, etc). ◇ Certification: ISO9001, ISO14001, OHSAS18001, ROHS, TUV, CE, UL, CU-TR, CCC.
