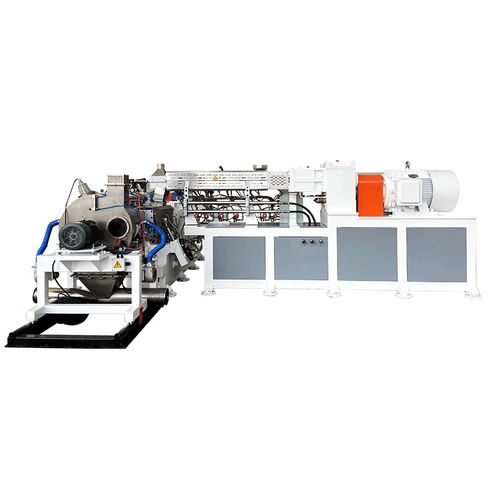

Twin screw extruder PSHJ-75
compoundingfor PVCflexible

Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible - image - 2
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible - image - 3
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible - image - 4
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible - image - 5
Twin screw extruder - PSHJ-75 - Jiangsu Xinda Tech Limited - compounding / for PVC / flexible - image - 6
Add to favorites
Compare this product

Characteristics

Number of screws
twin screw
Applications
compounding
Treated material
for PVC
Other characteristics
flexible, clamshell barrel
Output

Max.: 1,000 kg/h
(2,204.6226 lb/h)

Min.: 500 kg/h
(1,102.3113 lb/h)

Screw diameter

71 mm
(2.8 in)

Screw length

Max.: 3,000 mm
(118 in)

2,700 mm
(106 in)

Min.: 1,875 mm
(74 in)

Maximum speed

600 rpm, 800 rpm
(3,770 rad.min-1, 5,027 rad.min-1)

Torque

Max.: 13 Nm
(10 ft.lb)

10 Nm
(7 ft.lb)

Min.: 5 Nm
(4 ft.lb)

Temperature

Max.: 400 °C
(752 °F)

200 °C
(392 °F)

Min.: 10 °C
(50 °F)

Maximum pressure

Max.: 15 bar
(217.6 psi)

10 bar
(145 psi)

Min.: 5 bar
(72.5 psi)

Overall length

Max.: 4,000 mm
(157 in)

1,500 mm
(59 in)

Min.: 1,000 mm
(39 in)

Overall width

Max.: 2,000 mm
(79 in)

1,800 mm
(71 in)

Min.: 1,000 mm
(39 in)

Total height

Max.: 2,000 mm
(79 in)

1,800 mm
(71 in)

Min.: 1,000 mm
(39 in)

Weight

Max.: 5,000 kg
(11,023 lb)

3,000 kg
(6,614 lb)

Min.: 2,000 kg
(4,409 lb)

Power

Max.: 355 kW
(482.67 hp)

Min.: 160 kW
(217.54 hp)

Description

Jiangsu Xinda Tech Limited is a professional twin screw extruder manufacturer in China. Xinda’s twin screw extruder machine is among the most reliable solutions in the plastic compounding market. They are also highly efficient for modified granulation. Currently, over 2800 Compounding Lines are running in 65 countries worldwide. We are a compounding system solution supplier of 3M, PolyOne… Application We provide our machinery users with consistent high productivity and product quality and the maximum cost effectiveness with XINDA technology. The XINDA co rotating twin screw extruder machine is ideal for precise compounding of polyolefins,engineered plastics and other continuous processes. Color & Filler Masterbatch White MB Black MB Color MB Filler MB Additive MB PVC Pelletizing Compounds PVC Shoe Sole PVC Pipe PVC Sheet PVC Flooring PVC Wig Cable & Wire Compounds PVC Cable PEX Cable HFFR Cable XLPE Cable Semi-Conductive Cable Engineering Plastics Compounds PA Compounds PC Compounds PET Compounds PBT Compounds POM Compounds Biodegradable Plastics Compounds PLA PBS PBAT PLA + Starch PBAT + Starch Thermosetting Plastics Compounds BMC EMC Urea Phenolic Melamine Rubber & Elastomer Compounds Rubber TPE Compounds TPU Compounds TPO Compounds SEBS Compounds Pharma & Special Compounds Magnetic PET Food Vegan Meat Wood Composite
