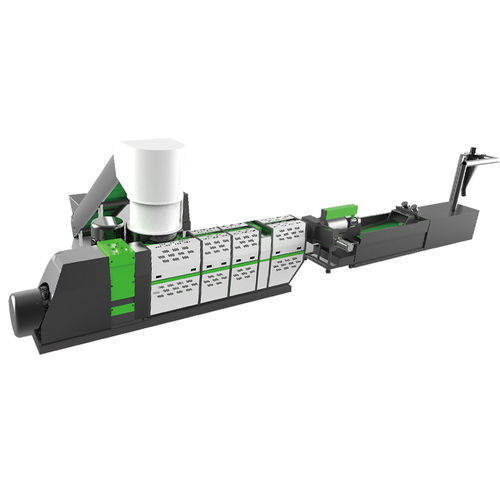

Recycling extruder SJ-100for PEfor HDPEfor LDPE
Add to favorites
Compare this product
Characteristics
- Applications
- recycling
- Treated material
- for PE, for HDPE, for LDPE, for LLDPE, plastic film
- Number of screws
- single-screw
- Other characteristics
- vented, dewatering
- Output
Max.: 1,200 kg/h
(2,645.5471 lb/h)300 kg/h
(661.3868 lb/h)Min.: 150 kg/h
(330.6934 lb/h)- Screw diameter
Max.: 185 mm
(7.3 in)100 mm
(3.9 in)Min.: 80 mm
(3.1 in)- Screw length
Max.: 2,500 mm
(98 in)1,800 mm
(71 in)Min.: 1,440 mm
(57 in)- Maximum speed
Max.: 150 rpm
(942 rad.min-1)Min.: 10 rpm
(63 rad.min-1)- Torque
Max.: 12 Nm
(9 ft.lb)6 Nm
(4 ft.lb)Min.: 5 Nm
(4 ft.lb)- Temperature
Max.: 400 °C
(752 °F)320 °C
(608 °F)Min.: 100 °C
(212 °F)- Maximum pressure
Max.: 15 bar
(217.6 psi)10 bar
(145 psi)Min.: 5 bar
(72.5 psi)- Overall length
Max.: 5,540 mm
(218 in)4,000 mm
(157 in)Min.: 840 mm
(33 in)- Overall width
Max.: 1,500 mm
(59 in)900 mm
(35 in)Min.: 800 mm
(31 in)- Total height
Max.: 2,000 mm
(79 in)1,500 mm
(59 in)Min.: 1,000 mm
(39 in)- Weight
Max.: 6,000 kg
(13,228 lb)4,000 kg
(8,818 lb)Min.: 1,000 kg
(2,205 lb)- Power
Max.: 480 kW
(652.62 hp)110 kW
(149.56 hp)Min.: 5 kW
(6.8 hp)
Description
Features
1.Intelligent control:：
2.HMI PLC control：Ergonomic touch screen, easy operation, high stability and low maintenance cost.
3.Process formula memory: According to the formulation and logic of different materials to set parameters, it can easily load the saved process formula from the formula storage system, to make the process simpler.
4.Remote diagnosis and data transfer: Combined with Bluetooth and modules, realize remote data transfer and monitor, fast diagnosis.
5.Preheating: Preheat the equipment in advance according to the formula, to save labor.
6.High security protection: ensure the security of personnel and equipment
7.Emergency protection (to stop the equipment during emergency)
8.Limit switch
9.Protective cover
10.High-speed transmission warning (yellow painting sign)
11.Lower energy consumption and higher production:
12.Rely on a special-design control program and process monitor to achieve lower energy consumption.
13.Higher production is obtained under the same equipment specification, increasing output, reducing energy consumption.
14.One-stop service:：
15.Provide a complete set of solutions: factory design, equipment and auxiliary machine, fast response service system (online + underline)
