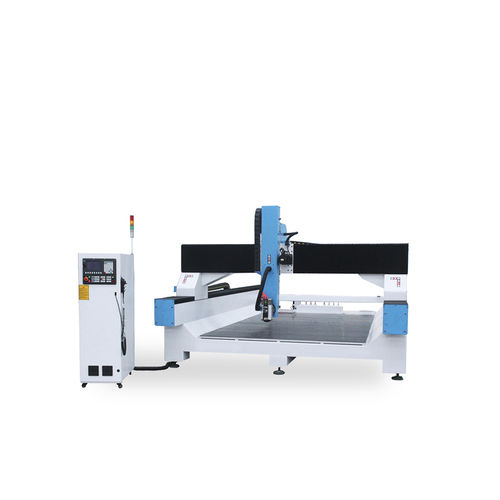

CNC router HT-2030
4-axisspindlewood

CNC router
CNC router
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
4-axis
Number of spindles
spindle
Treated material
wood, metal, acrylic
Applications
for furniture
X travel

2,000 mm
(79 in)

Y travel

3,000 mm
(118 in)

Z travel

Min.: 300 mm
(12 in)

Max.: 700 mm
(28 in)

Description

4 Axis CNC Router HT-2030 characteristic his machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software. With Syntec EZ-4ME control system, Yaskawa servo motors, HSD or Chinese air cooling spindle, Delta inverter. With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets. With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration. NO. : Description : Parameter 1 : X,Y,Z Working Area : 2000x3000x(300-700mm)*±180° 2 : Table Size : 2000×3500mm 3 : X,Y,Z Traveling Positioning Accuracy : ±0.01/300mm 4 : X,Y,Z Repositioning Accuracy: : ±0.01mm 5 : Table Surface : Vacuum and T-slot Combined (Option: T-slot Table) 6 : Frame : Big Steel Tube Structure 7 : X, Y Structure : Helical rack gear , HIWIN Linear guide 8 : Z Structure : Imported Ball Screw , HIWIN Linear guide 9 : Max. Power Consumption : (Without Spindle) 4.2Kw 10 : Max. Rapid Travel Rate : 40000mm/min 11 : Max. Working Speed : 30000mm/min 12 : Spindle Power : HSD spindle 4.5 or 9kw( Italy ATC spindle for option) 13 : Spindle Speed : 0-18000RPM
